DAESAN Lever Hoist
DAESAN NDM manual lever hoists from 0.8 t to 12 t for lifting, pulling and positioning applications.
- Category
- Manual Hoists
- Subcategory
- Lever Hoists
Product overview
DAESAN NDM lever hoists are portable manual hoists. Select the capacity, required lift and attachment arrangement for the application. SANS 1636:2007 documentation applies only to the evidenced 0.8, 1.5, 2, 3, 6 and 9 t scope; the 12 t configuration remains a sellable configuration outside that certificate scope.
Dimensional views
Use these views with the matching configuration and specification. Drawings are not to scale.

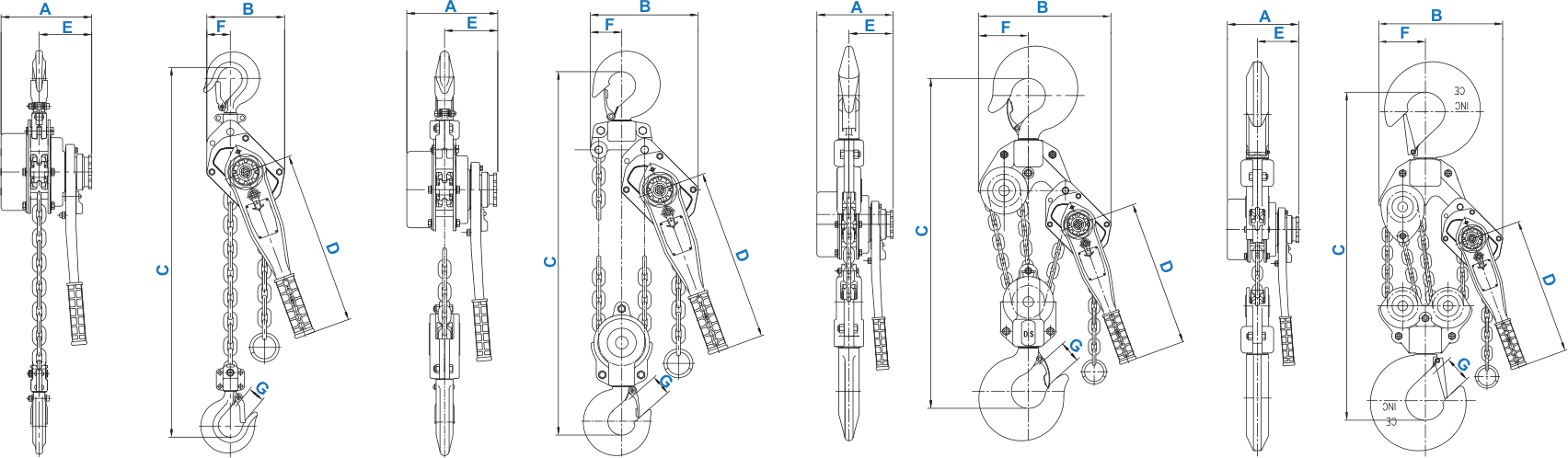

DAESAN Lever Hoist — dimensional views
NDM outline views. Match capacity and number of chain falls to the configuration table; the 12 t model is outside the stated SABS approval scope.
Open full-size image of DAESAN Lever Hoist dimensional views (new tab)Configurations
7 available configurations.
| Variant | Capacity | SABS scope | Model | Capacity (t) | Chain Falls | Standard Lift (m) | Reference Lift (m) | Load Chain (mm) | Reference Mass (kg) | A Mm (mm) | B Mm (mm) | C Mm (mm) | D Mm (mm) | E Mm (mm) | F Mm (mm) | G Mm (mm) | Pulling Effort (kgf) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NDM08 | 0.8 t | SABS approved · 11894/18657 | NDM08 | 0.8 t | 1 | 3 m | 1.5 m | 6.3 mm | 7 kg | 155.5 mm | 121 mm | 329.5 mm | 273 mm | 102 mm | 38 mm | 25 mm | 30 kgf |
| NDM15 | 1.5 t | SABS approved · 11894/18657 | NDM15 | 1.5 t | 1 | 3 m | 1.5 m | 7.1 mm | 10.5 kg | 168.5 mm | 141.5 mm | 379 mm | 386 mm | 107 mm | 45 mm | 28 mm | 30 kgf |
| NDM20 | 2 t | SABS approved · 11894/18657 | NDM20 | 2 t | 1 | 3 m | 1.5 m | 7.1 mm | 11 kg | 168.5 mm | 141.5 mm | 395 mm | 386 mm | 107 mm | 45 mm | 30 mm | 40 kgf |
| NDM30 | 3 t | SABS approved · 11894/18657 | NDM30 | 3 t | 1 | 3 m | 1.5 m | 9 mm | 17.5 kg | 201 mm | 172.5 mm | 465 mm | 386 mm | 117 mm | 52 mm | 38 mm | 37 kgf |
| NDM60 | 6 t | SABS approved · 11894/18657 | NDM60 | 6 t | 2 | 3 m | 1.5 m | 9 mm | 29 kg | 201 mm | 241 mm | 615 mm | 386 mm | 117 mm | 70 mm | 46 mm | 38 kgf |
| NDM90 | 9 t | SABS approved · 11894/18657 | NDM90 | 9 t | 3 | 3 m | 1.5 m | 9 mm | 56 kg | 201 mm | 349 mm | 775 mm | 386 mm | 117 mm | 131 mm | 57 mm | 39 kgf |
| NDM120 | 12 t | Outside approval scope | NDM120 | 12 t | 4 | 3 m | 1.5 m | 9 mm | 74 kg | 201 mm | 349 mm | 880 mm | 386 mm | 117 mm | 131 mm | 79 mm | 40 kgf |
Engineering Supplies · Technical data
DAESAN Lever Hoist
NDM08
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DAESAN Lever Hoist · NDM08 | |
|---|---|
| Specification | Value |
| SABS scope | SABS approved · 11894/18657 · Valid until 2027-11-06 |
| Model | NDM08 |
| Capacity | 0.8 t |
| Chain Falls | 1 |
| Standard Lift | 3 m |
| Reference Lift | 1.5 m |
| Load Chain | 6.3 mm |
| Reference Mass | 7 kg |
| A Mm | 155.5 mm |
| B Mm | 121 mm |
| C Mm | 329.5 mm |
| D Mm | 273 mm |
| E Mm | 102 mm |
| F Mm | 38 mm |
| G Mm | 25 mm |
| Pulling Effort | 30 kgf |
Engineering Supplies · Technical data
DAESAN Lever Hoist
NDM15
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DAESAN Lever Hoist · NDM15 | |
|---|---|
| Specification | Value |
| SABS scope | SABS approved · 11894/18657 · Valid until 2027-11-06 |
| Model | NDM15 |
| Capacity | 1.5 t |
| Chain Falls | 1 |
| Standard Lift | 3 m |
| Reference Lift | 1.5 m |
| Load Chain | 7.1 mm |
| Reference Mass | 10.5 kg |
| A Mm | 168.5 mm |
| B Mm | 141.5 mm |
| C Mm | 379 mm |
| D Mm | 386 mm |
| E Mm | 107 mm |
| F Mm | 45 mm |
| G Mm | 28 mm |
| Pulling Effort | 30 kgf |
Engineering Supplies · Technical data
DAESAN Lever Hoist
NDM20
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DAESAN Lever Hoist · NDM20 | |
|---|---|
| Specification | Value |
| SABS scope | SABS approved · 11894/18657 · Valid until 2027-11-06 |
| Model | NDM20 |
| Capacity | 2 t |
| Chain Falls | 1 |
| Standard Lift | 3 m |
| Reference Lift | 1.5 m |
| Load Chain | 7.1 mm |
| Reference Mass | 11 kg |
| A Mm | 168.5 mm |
| B Mm | 141.5 mm |
| C Mm | 395 mm |
| D Mm | 386 mm |
| E Mm | 107 mm |
| F Mm | 45 mm |
| G Mm | 30 mm |
| Pulling Effort | 40 kgf |
Engineering Supplies · Technical data
DAESAN Lever Hoist
NDM30
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DAESAN Lever Hoist · NDM30 | |
|---|---|
| Specification | Value |
| SABS scope | SABS approved · 11894/18657 · Valid until 2027-11-06 |
| Model | NDM30 |
| Capacity | 3 t |
| Chain Falls | 1 |
| Standard Lift | 3 m |
| Reference Lift | 1.5 m |
| Load Chain | 9 mm |
| Reference Mass | 17.5 kg |
| A Mm | 201 mm |
| B Mm | 172.5 mm |
| C Mm | 465 mm |
| D Mm | 386 mm |
| E Mm | 117 mm |
| F Mm | 52 mm |
| G Mm | 38 mm |
| Pulling Effort | 37 kgf |
Engineering Supplies · Technical data
DAESAN Lever Hoist
NDM60
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DAESAN Lever Hoist · NDM60 | |
|---|---|
| Specification | Value |
| SABS scope | SABS approved · 11894/18657 · Valid until 2027-11-06 |
| Model | NDM60 |
| Capacity | 6 t |
| Chain Falls | 2 |
| Standard Lift | 3 m |
| Reference Lift | 1.5 m |
| Load Chain | 9 mm |
| Reference Mass | 29 kg |
| A Mm | 201 mm |
| B Mm | 241 mm |
| C Mm | 615 mm |
| D Mm | 386 mm |
| E Mm | 117 mm |
| F Mm | 70 mm |
| G Mm | 46 mm |
| Pulling Effort | 38 kgf |
Engineering Supplies · Technical data
DAESAN Lever Hoist
NDM90
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DAESAN Lever Hoist · NDM90 | |
|---|---|
| Specification | Value |
| SABS scope | SABS approved · 11894/18657 · Valid until 2027-11-06 |
| Model | NDM90 |
| Capacity | 9 t |
| Chain Falls | 3 |
| Standard Lift | 3 m |
| Reference Lift | 1.5 m |
| Load Chain | 9 mm |
| Reference Mass | 56 kg |
| A Mm | 201 mm |
| B Mm | 349 mm |
| C Mm | 775 mm |
| D Mm | 386 mm |
| E Mm | 117 mm |
| F Mm | 131 mm |
| G Mm | 57 mm |
| Pulling Effort | 39 kgf |
Engineering Supplies · Technical data
DAESAN Lever Hoist
NDM120
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DAESAN Lever Hoist · NDM120 | |
|---|---|
| Specification | Value |
| SABS scope | Outside approval scope |
| Model | NDM120 |
| Capacity | 12 t |
| Chain Falls | 4 |
| Standard Lift | 3 m |
| Reference Lift | 1.5 m |
| Load Chain | 9 mm |
| Reference Mass | 74 kg |
| A Mm | 201 mm |
| B Mm | 349 mm |
| C Mm | 880 mm |
| D Mm | 386 mm |
| E Mm | 117 mm |
| F Mm | 131 mm |
| G Mm | 79 mm |
| Pulling Effort | 40 kgf |
Compliance information
SABS-approved DAESAN Lever Hoists are available in certified capacities from 0.8 t to 9 t under permit 11894/18657, in accordance with SANS 1636:2007. The 12 t model is not included in this approval scope.
Valid until: 2027-11-06
Open DAESAN Lever Hoist SABS approval certificate
Variant scope: the 12 t model is outside this approval and does not carry the SABS badge.
