DAESAN · MANUAL TRAVEL TROLLEYS

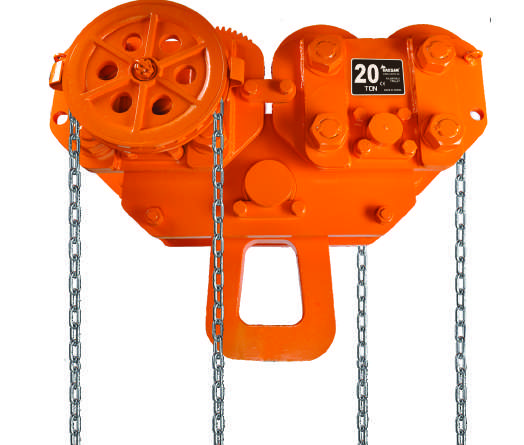

DP plain & DG geared trolleys.
Specify travel, beam fit and hoist connection as one requirement. Explore the primary DP/DG range, compare reference data and request a quotation.
- DP plain travel
- 0.5–10 t
- DG geared travel
- 1–40 t
- Supply status
- To order
All configurations, special widths, fitments and delivery are subject to quotation.
Start with the way you need to travel.
DP uses manual push travel. DG uses a hand chain to control trolley movement. Your load, route, operator position and complete lifting arrangement determine what needs review.
A trolley is part of a system.
Rated capacity alone does not confirm suitability. Include the hoist mass, suspension details, beam profile and thickness, available clearance, curves, joints and travel requirements.
For an unidentified beam or an existing installation, leave unknown details blank and ask for technical assistance.
CHOOSE · SPECIFY · ENQUIRE
Build your trolley requirement.
15 capacity entries match.
Catalogue widths are reference values. Manufacturer manual ranges differ. Matching configured drawings and manufacturer confirmation control; the selector does not approve a beam fit.
Tell us about the beam and application.
Unknown details can be left blank. Enter dimensions in the units shown.
Existing equipment / pre-use or defect observations
Use the practical worksheet to record observations. This enquiry does not certify inspection or return to service.
SIDE-BY-SIDE REFERENCE
Compare plain and geared travel.
Select up to three entries from the list. EX options stay in a separate comparison context.
| Specification | DP1 | DG1 |
|---|---|---|
| Capacity (t) | 1 | 1 |
| Travel family | DP | DG |
| Catalogue beam width (mm) | 75–125 | 75–125 |
| Minimum curve radius (mm) | 1300 | 1300 |
| Catalogue net mass (kg) | 10 | 14 |
| DG operating reach (m) | Not applicable | 2.5 |
| Next step | Specify this entry | Specify this entry |
DG operating reach is not hoist lift. C, D and H dimensions change with beam width; use the manufacturer drawing with the confirmed assembly.
SEPARATE APPLICATION REVIEW
EXDP & EXDG options.

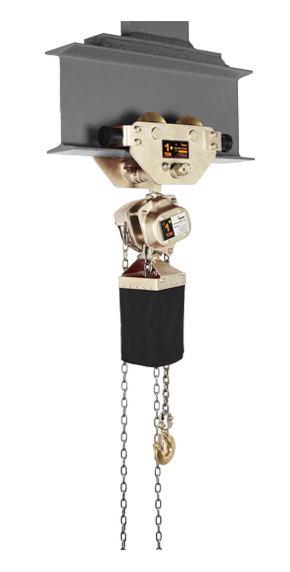

Explore manufacturer-listed spark-resistant trolley options at 1, 2, 3, 5 and 10 t for each family. Confirm the exact manufacturer code, assembly, materials, environment and supporting evidence before specifying.
No SABS, CE, ATEX, IECEx or whole-range conformity claim is made. A product-family name does not establish hazardous-area suitability.
View all 10 EX capacity enquiry entries
- EXDP · 1 t capacity enquiry · exact model code, dimensions and fitment to confirm
- EXDP · 2 t capacity enquiry · exact model code, dimensions and fitment to confirm
- EXDP · 3 t capacity enquiry · exact model code, dimensions and fitment to confirm
- EXDP · 5 t capacity enquiry · exact model code, dimensions and fitment to confirm
- EXDP · 10 t capacity enquiry · exact model code, dimensions and fitment to confirm
- EXDG · 1 t capacity enquiry · exact model code, dimensions and fitment to confirm
- EXDG · 2 t capacity enquiry · exact model code, dimensions and fitment to confirm
- EXDG · 3 t capacity enquiry · exact model code, dimensions and fitment to confirm
- EXDG · 5 t capacity enquiry · exact model code, dimensions and fitment to confirm
- EXDG · 10 t capacity enquiry · exact model code, dimensions and fitment to confirm
MANUFACTURER PARTS REFERENCES · 29 SOURCE ROWS
Find the reference before requesting a part.

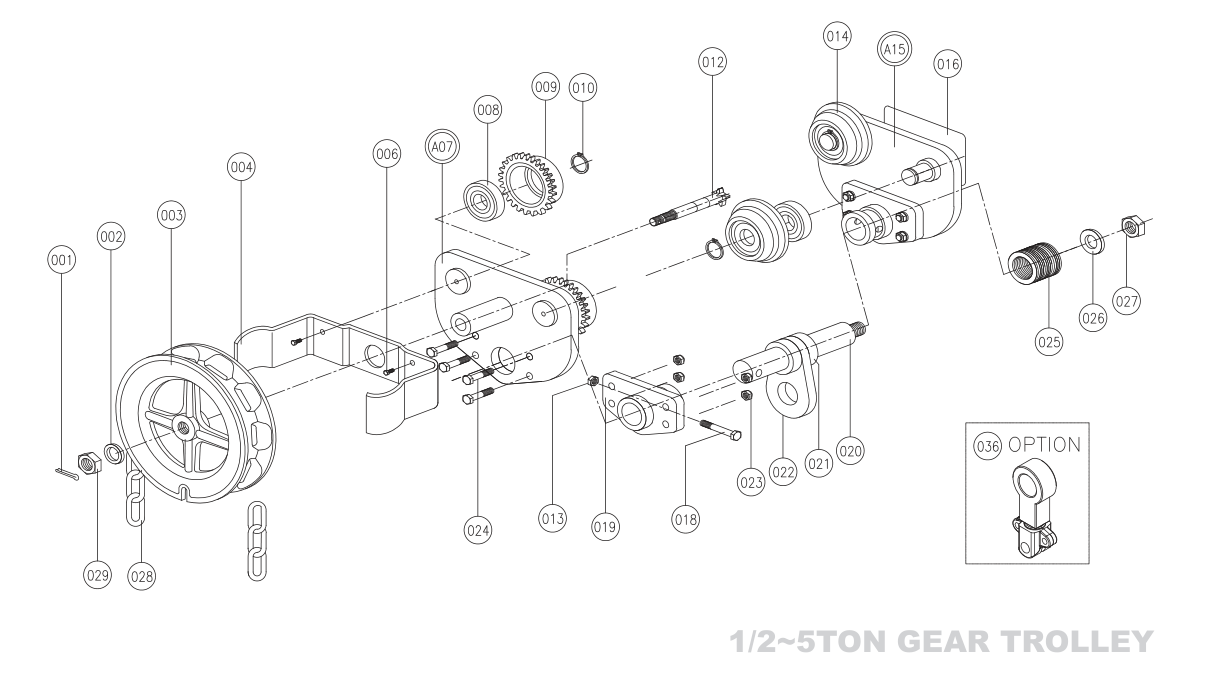

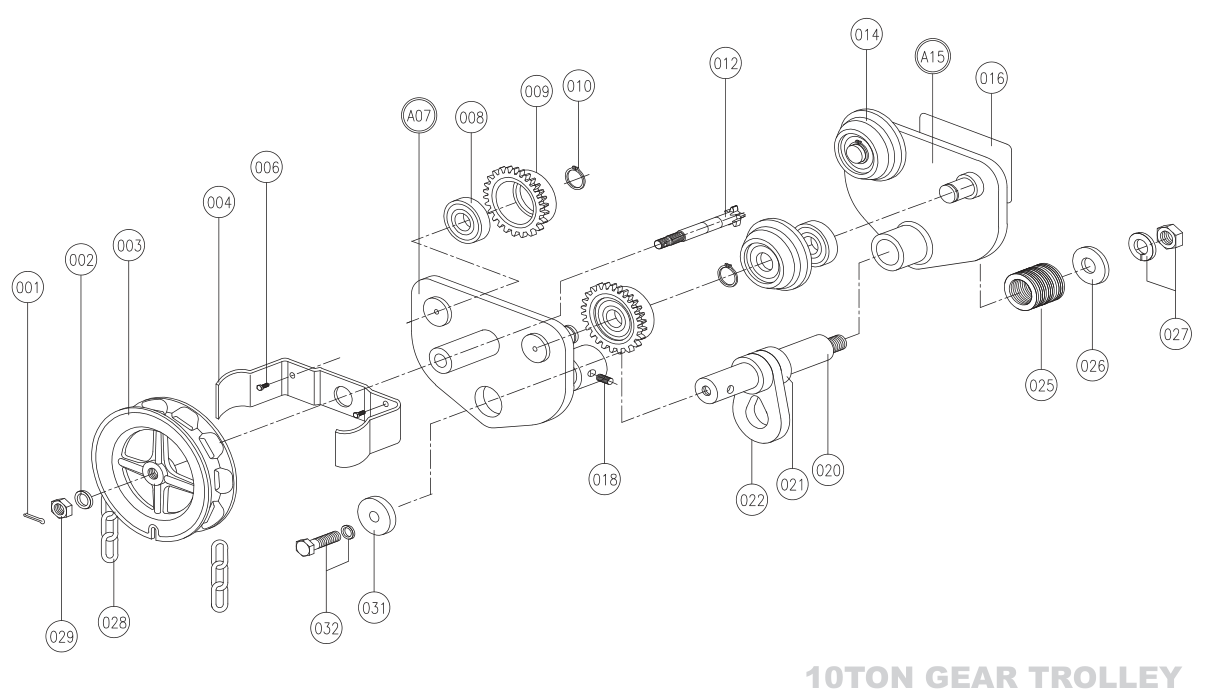

The supplied manual’s page-6 schedule documents DG1, DG2, DG3, DG5 and DG10. It does not establish DP, EX or DG15–40 t interchangeability. Use other drawings for identification assistance.
29 matching source rows · 0 selected.
| Reference | Manufacturer description | Source row | Quantity in assembly | Enquiry |
|---|---|---|---|---|
| 001 | COTTER PIN | left · 1 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: 1 | |
| 002 | PLAIN WASHER | left · 2 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: 1 | |
| 003 | HAND WHEEL | left · 3 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: 1 | |
| 004 | GUIDE PLATE | left · 4 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: 1 | |
| 006 | WRENCH BOLT | left · 5 See source | View 5 model columnsDG1: 2 DG2: 2 DG3: 2 DG5: 2 DG10: 2 | |
| A07 | GEAR SIDE PLATE ASS’Y | left · 6 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: 1 | |
| 008 | BALL BEARING | left · 7 See source | View 5 model columnsDG1: 4 DG2: 4 DG3: 4 DG5: 4 DG10: 4 | |
| 009 | GEAR ROLLER | left · 8 See source | View 5 model columnsDG1: 2 DG2: 2 DG3: 2 DG5: 2 DG10: 2 | |
| 010 | SNAP RING | left · 9 See source | View 5 model columnsDG1: 4 DG2: 4 DG3: 4 DG5: 4 DG10: 4 | |
| 012 | PINION SHAFT | left · 10 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: 1 | |
| 013 | U-NUT | left · 11 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: N/A | |
| 014 | PLAIN ROLLER | left · 12 See source | View 5 model columnsDG1: 2 DG2: 2 DG3: 2 DG5: 2 DG10: 2 | |
| A15 | PLAIN SIDE PLATE ASS’Y | left · 13 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: 1 | |
| 016 | NAME PLATE | left · 14 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: 1 | |
| 018 | FIX BOLT | left · 15 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: 1 | |
| 019 | BRACKET | right · 1 See source | View 5 model columnsDG1: 2 DG2: 2 DG3: 2 DG5: 2 DG10: N/A | |
| 020 | STAY | right · 2 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: 1 | |
| 020 | STAY(+50mm) | right · 3 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: N/A | |
| 021 | RING | right · 4 See source | View 5 model columnsDG1: 2 DG2: 2 DG3: 2 DG5: 2 DG10: 2 | |
| 022 | CENTER PLATE | right · 5 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: 1 | |
| 023 | HEX NUT S/W | right · 6 See source | View 5 model columnsDG1: 4 DG2: 8 DG3: 8 DG5: 8 DG10: N/A | |
| 024 | HEX BOLT | right · 7 See source | View 5 model columnsDG1: 4 DG2: 8 DG3: 8 DG5: 8 DG10: N/A | |
| 025 | ADJUST WASHER | right · 8 See source | View 5 model columnsDG1: 16 DG2: 16 DG3: 16 DG5: 16 DG10: 16 | |
| 026 | SIDE WASHER | right · 9 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: 1 | |
| 027 | U-NUT | right · 10 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: 1 | |
| 029 | PINION NUT | right · 11 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: 1 | |
| 031 | SIDE WASHER B | right · 12 See source | View 5 model columnsDG1: N/A DG2: N/A DG3: N/A DG5: N/A DG10: 1 | |
| 032 | HEX BOLT S/W | right · 13 See source | View 5 model columnsDG1: N/A DG2: N/A DG3: N/A DG5: N/A DG10: 1 | |
| 036 | CONNECTOR ASS’Y | right · 14 See source | View 5 model columnsDG1: 1 DG2: 1 DG3: 1 DG5: 1 DG10: N/A |
Item 020 has two distinct schedule entries. The manual’s retention descriptions also differ between narrative and table; references are not Cooper stock codes, stock promises or fitment approval. Do not substitute by number alone.
