DAESAN Electric Hoist
DAESAN hook-suspended electric chain hoists: DSA/EDSA from 1–20 t and DST/EDST in 1 t and 2 t.
- Category
- Electric Hoists
- Subcategory
- Electric Chain Hoists
Product overview
DSA and EDSA share the listed capacity options: specify single speed (DSA) or inverter-controlled dual speed (EDSA) with your enquiry. DST and EDST are separate models with their own dimensions and weights. Confirm supply voltage, speed option, lift height and suspension with the quotation. Standard manufacturer voltage options are 220 / 380 / 440 V; special voltage is by request. The 525 V catalogue offer requires confirmation for the selected model. Dimensions and weights below apply to the listed hook-suspension models, not trolley-mounted or low-headroom arrangements. H is minimum headroom. The DST/EDST manual states a ±2% variation for hot-forged hook nominal dimensions. A dash indicates a field that does not apply to that speed version or is not specified.
Dimensional views
Use these views with the matching configuration and specification. Drawings are not to scale.

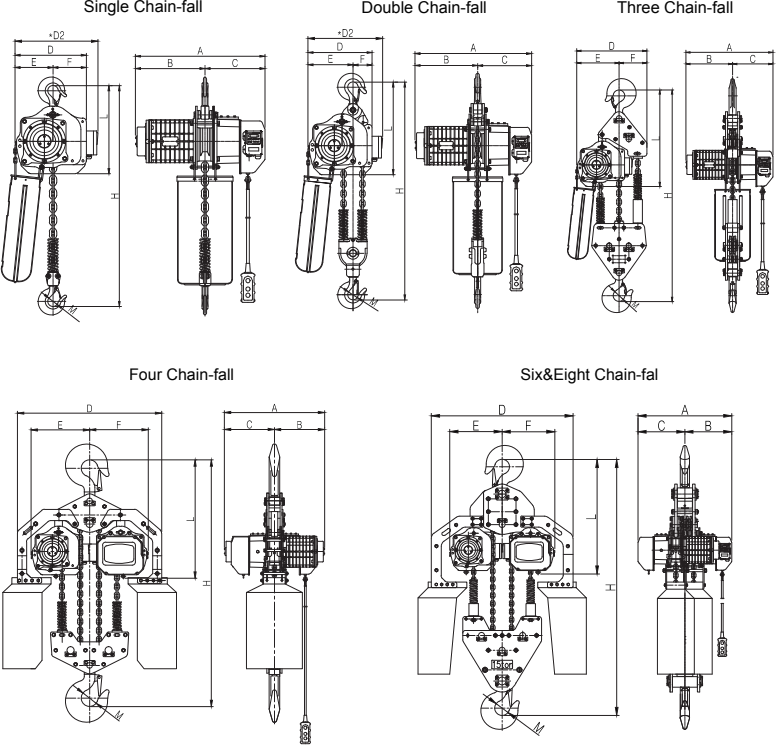

DAESAN Electric Hoist — DSA/EDSA dimensional views
DSA/EDSA hook suspension only: one, two, three, four, six/eight chain falls. Match the selected model and the single-speed/inverter dimension columns.
Open full-size image of DAESAN Electric Hoist — DSA/EDSA dimensional views (new tab)

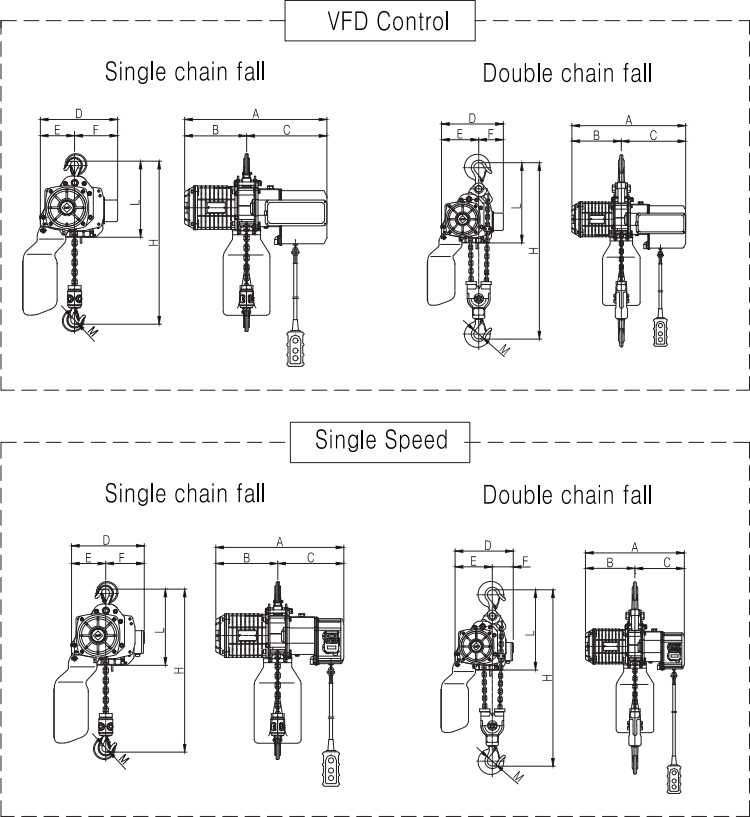

DAESAN Electric Hoist — DST/EDST dimensional views
DST-1S, DST-2W, EDST-1S and EDST-2W hook suspension only. Upper views show inverter control; lower views show single speed. Do not use DSA/EDSA dimensions for these models.
Open full-size image of DAESAN Electric Hoist — DST/EDST dimensional views (new tab)Configurations
13 available configurations.
| Variant | Capacity | Weight | Range / speed option | Chain falls | Standard lift (m) | Pendant cord (m) | Single speed (50 / 60 Hz) (m/min) | Inverter speed range (m/min) | Lifting motor (kW) | Load chain diameter × pitch (mm) | Single-speed net weight (kg) | Inverter net weight (kg) | A single speed (mm) | A inverter (mm) | B (mm) | C single speed (mm) | C inverter (mm) | D (mm) | D2 (mm) | E (mm) | F (mm) | M (mm) | H minimum headroom (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DSA/EDSA 1S | 1 t | — | DSA single speed / EDSA inverter-controlled dual speed | 1 | 4 m | 3.5 m | 6.8 / 8.2 m/min | 2.2–6.4 m/min | 1.8 kW | 7.1 × 21 mm | 72 kg | 74 kg | 572 mm | 652 mm | 307 mm | 274 mm | 345 mm | 300 mm | 357 mm | 170 mm | 130 mm | 35 mm | 566 mm | 405 mm |
| DSA/EDSA 2W | 2 t | — | DSA single speed / EDSA inverter-controlled dual speed | 2 | 4 m | 3.5 m | 3.4 / 4.1 m/min | 1.1–3.2 m/min | 1.8 kW | 7.1 × 21 mm | 85 kg | 87 kg | 572 mm | 652 mm | 307 mm | 274 mm | 345 mm | 300 mm | 357 mm | 219 mm | 82 mm | 53.5 mm | 805 mm | 490 mm |
| DSA/EDSA 2S | 2 t | — | DSA single speed / EDSA inverter-controlled dual speed | 1 | 4 m | 3.5 m | 6.7 / 8.1 m/min | 2.2–6.5 m/min | 3.5 kW | 11.2 × 34 mm | 121 kg | 123 kg | 671 mm | 738 mm | 358 mm | 313 mm | 380 mm | 370 mm | 430 mm | 198 mm | 172 mm | 53.5 mm | 755 mm | 483 mm |
| DSA/EDSA 3S | 3 t | — | DSA single speed / EDSA inverter-controlled dual speed | 1 | 5 m | 4.5 m | 4.35 / 5.15 m/min | 1.5–4.6 m/min | 3.5 kW | 11.2 × 34 mm | 147 kg | 149 kg | 671 mm | 738 mm | 358 mm | 313 mm | 380 mm | 370 mm | 430 mm | 198 mm | 172 mm | 60 mm | 945 mm | 560 mm |
| DSA/EDSA 5W | 5 t | — | DSA single speed / EDSA inverter-controlled dual speed | 2 | 5 m | 4.5 m | 1.8 / 2.1 m/min | 0.9–2.1 m/min | 3.5 kW | 11.2 × 34 mm | 274 kg | 276 kg | 671 mm | 738 mm | 358 mm | 313 mm | 380 mm | 370 mm | 430 mm | 273 mm | 102 mm | 70 mm | 1060 mm | 580 mm |
| DSA/EDSA 7.5W | 7.5 t | — | DSA single speed / EDSA inverter-controlled dual speed | 3 | 5 m | 4.5 m | 2.75 / 3.25 m/min | 1.35–3.25 m/min | 3.5 kW | 11.2 × 34 mm | 407 kg | 411 kg | 671 mm | 738 mm | 358 mm | 313 mm | 380 mm | 538 mm | — | 325 mm | 213 mm | 90 mm | 1440 mm | 740 mm |
| DSA/EDSA 10W | 10 t | — | DSA single speed / EDSA inverter-controlled dual speed | 4 | 5 m | 4.5 m | 1.8 / 2.1 m/min | 0.9–2.1 m/min | 3.5 kW | 11.2 × 34 mm | 796 kg | 800 kg | 716 mm | 760 mm | 380 mm | 380 mm | 380 mm | 1032 mm | — | 418 mm | 418 mm | 120 mm | 1440 mm | 822 mm |
| DSA/EDSA 15W | 15 t | — | DSA single speed / EDSA inverter-controlled dual speed | 6 | 5 m | 4.5 m | 1.3 / 1.6 m/min | 0.9–2.1 m/min | 3.5 × 2 kW | 11.2 × 34 mm | 901 kg | 905 kg | 764 mm | 898 mm | 449 mm | 449 mm | 449 mm | 1152 mm | — | 426 mm | 426 mm | 120 mm | 1790 mm | 933 mm |
| DSA/EDSA 20W | 20 t | — | DSA single speed / EDSA inverter-controlled dual speed | 8 | 5 m | 4.5 m | 1.3 / 1.6 m/min | 0.67–1.6 m/min | 3.5 × 2 kW | 11.2 × 34 mm | 901 kg | 905 kg | 806 mm | 940 mm | 470 mm | 470 mm | 470 mm | 1152 mm | — | 426 mm | 426 mm | 120 mm | 1790 mm | 933 mm |
| DST-1S | 1 t | 58 kg | DST single speed | 1 | 4 m | 3.5 m | 6.8 / 8.2 m/min | — | 1.8 kW | 7.1 × 21 mm | 58 kg | — | 526 mm | — | 264 mm | 262 mm | — | 311 mm | — | 146 mm | 165 mm | 35 mm | 400 mm | 324 mm |
| DST-2W | 2 t | 71 kg | DST single speed | 2 | 4 m | 3.5 m | 3.4 / 4.1 m/min | — | 1.8 kW | 7.1 × 21 mm | 71 kg | — | 526 mm | — | 264 mm | 262 mm | — | 311 mm | — | 198 mm | 113 mm | 53.5 mm | 680 mm | 428 mm |
| EDST-1S | 1 t | 63 kg | EDST inverter control | 1 | 4 m | 3.5 m | — | 2.7–8.2 m/min | 1.8 kW | 7.1 × 21 mm | — | 63 kg | — | 606 mm | 264 mm | — | 342 mm | 329 mm | — | 146 mm | 183 mm | 35 mm | 400 mm | 358 mm |
| EDST-2W | 2 t | 77 kg | EDST inverter control | 2 | 4 m | 3.5 m | — | 1.3–4.1 m/min | 1.8 kW | 7.1 × 21 mm | — | 77 kg | — | 606 mm | 264 mm | — | 342 mm | 329 mm | — | 198 mm | 131 mm | 53.5 mm | 680 mm | 462 mm |

Engineering Supplies · Technical data
DAESAN Electric Hoist
DSA/EDSA 1S
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
Specify DSA single speed or EDSA inverter-controlled dual speed with the quote request.
| DAESAN Electric Hoist · DSA/EDSA 1S | |
|---|---|
| Specification | Value |
| Capacity | 1 t |
| Range / speed option | DSA single speed / EDSA inverter-controlled dual speed |
| Chain falls | 1 |
| Standard lift | 4 m |
| Pendant cord | 3.5 m |
| Single speed (50 / 60 Hz) | 6.8 / 8.2 m/min |
| Inverter speed range | 2.2–6.4 m/min |
| Lifting motor | 1.8 kW |
| Load chain diameter × pitch | 7.1 × 21 mm |
| Single-speed net weight | 72 kg |
| Inverter net weight | 74 kg |
| A single speed | 572 mm |
| A inverter | 652 mm |
| B | 307 mm |
| C single speed | 274 mm |
| C inverter | 345 mm |
| D | 300 mm |
| D2 | 357 mm |
| E | 170 mm |
| F | 130 mm |
| M | 35 mm |
| H minimum headroom | 566 mm |
| L | 405 mm |
Engineering Supplies · Technical data
DAESAN Electric Hoist
DSA/EDSA 2W
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
Specify DSA single speed or EDSA inverter-controlled dual speed with the quote request.
| DAESAN Electric Hoist · DSA/EDSA 2W | |
|---|---|
| Specification | Value |
| Capacity | 2 t |
| Range / speed option | DSA single speed / EDSA inverter-controlled dual speed |
| Chain falls | 2 |
| Standard lift | 4 m |
| Pendant cord | 3.5 m |
| Single speed (50 / 60 Hz) | 3.4 / 4.1 m/min |
| Inverter speed range | 1.1–3.2 m/min |
| Lifting motor | 1.8 kW |
| Load chain diameter × pitch | 7.1 × 21 mm |
| Single-speed net weight | 85 kg |
| Inverter net weight | 87 kg |
| A single speed | 572 mm |
| A inverter | 652 mm |
| B | 307 mm |
| C single speed | 274 mm |
| C inverter | 345 mm |
| D | 300 mm |
| D2 | 357 mm |
| E | 219 mm |
| F | 82 mm |
| M | 53.5 mm |
| H minimum headroom | 805 mm |
| L | 490 mm |
Engineering Supplies · Technical data
DAESAN Electric Hoist
DSA/EDSA 2S
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
Specify DSA single speed or EDSA inverter-controlled dual speed with the quote request.
| DAESAN Electric Hoist · DSA/EDSA 2S | |
|---|---|
| Specification | Value |
| Capacity | 2 t |
| Range / speed option | DSA single speed / EDSA inverter-controlled dual speed |
| Chain falls | 1 |
| Standard lift | 4 m |
| Pendant cord | 3.5 m |
| Single speed (50 / 60 Hz) | 6.7 / 8.1 m/min |
| Inverter speed range | 2.2–6.5 m/min |
| Lifting motor | 3.5 kW |
| Load chain diameter × pitch | 11.2 × 34 mm |
| Single-speed net weight | 121 kg |
| Inverter net weight | 123 kg |
| A single speed | 671 mm |
| A inverter | 738 mm |
| B | 358 mm |
| C single speed | 313 mm |
| C inverter | 380 mm |
| D | 370 mm |
| D2 | 430 mm |
| E | 198 mm |
| F | 172 mm |
| M | 53.5 mm |
| H minimum headroom | 755 mm |
| L | 483 mm |
Engineering Supplies · Technical data
DAESAN Electric Hoist
DSA/EDSA 3S
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
Specify DSA single speed or EDSA inverter-controlled dual speed with the quote request.
| DAESAN Electric Hoist · DSA/EDSA 3S | |
|---|---|
| Specification | Value |
| Capacity | 3 t |
| Range / speed option | DSA single speed / EDSA inverter-controlled dual speed |
| Chain falls | 1 |
| Standard lift | 5 m |
| Pendant cord | 4.5 m |
| Single speed (50 / 60 Hz) | 4.35 / 5.15 m/min |
| Inverter speed range | 1.5–4.6 m/min |
| Lifting motor | 3.5 kW |
| Load chain diameter × pitch | 11.2 × 34 mm |
| Single-speed net weight | 147 kg |
| Inverter net weight | 149 kg |
| A single speed | 671 mm |
| A inverter | 738 mm |
| B | 358 mm |
| C single speed | 313 mm |
| C inverter | 380 mm |
| D | 370 mm |
| D2 | 430 mm |
| E | 198 mm |
| F | 172 mm |
| M | 60 mm |
| H minimum headroom | 945 mm |
| L | 560 mm |
Engineering Supplies · Technical data
DAESAN Electric Hoist
DSA/EDSA 5W
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
Specify DSA single speed or EDSA inverter-controlled dual speed with the quote request.
| DAESAN Electric Hoist · DSA/EDSA 5W | |
|---|---|
| Specification | Value |
| Capacity | 5 t |
| Range / speed option | DSA single speed / EDSA inverter-controlled dual speed |
| Chain falls | 2 |
| Standard lift | 5 m |
| Pendant cord | 4.5 m |
| Single speed (50 / 60 Hz) | 1.8 / 2.1 m/min |
| Inverter speed range | 0.9–2.1 m/min |
| Lifting motor | 3.5 kW |
| Load chain diameter × pitch | 11.2 × 34 mm |
| Single-speed net weight | 274 kg |
| Inverter net weight | 276 kg |
| A single speed | 671 mm |
| A inverter | 738 mm |
| B | 358 mm |
| C single speed | 313 mm |
| C inverter | 380 mm |
| D | 370 mm |
| D2 | 430 mm |
| E | 273 mm |
| F | 102 mm |
| M | 70 mm |
| H minimum headroom | 1060 mm |
| L | 580 mm |
Engineering Supplies · Technical data
DAESAN Electric Hoist
DSA/EDSA 7.5W
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
Specify DSA single speed or EDSA inverter-controlled dual speed with the quote request.
| DAESAN Electric Hoist · DSA/EDSA 7.5W | |
|---|---|
| Specification | Value |
| Capacity | 7.5 t |
| Range / speed option | DSA single speed / EDSA inverter-controlled dual speed |
| Chain falls | 3 |
| Standard lift | 5 m |
| Pendant cord | 4.5 m |
| Single speed (50 / 60 Hz) | 2.75 / 3.25 m/min |
| Inverter speed range | 1.35–3.25 m/min |
| Lifting motor | 3.5 kW |
| Load chain diameter × pitch | 11.2 × 34 mm |
| Single-speed net weight | 407 kg |
| Inverter net weight | 411 kg |
| A single speed | 671 mm |
| A inverter | 738 mm |
| B | 358 mm |
| C single speed | 313 mm |
| C inverter | 380 mm |
| D | 538 mm |
| D2 | — |
| E | 325 mm |
| F | 213 mm |
| M | 90 mm |
| H minimum headroom | 1440 mm |
| L | 740 mm |
Engineering Supplies · Technical data
DAESAN Electric Hoist
DSA/EDSA 10W
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
Specify DSA single speed or EDSA inverter-controlled dual speed with the quote request.
| DAESAN Electric Hoist · DSA/EDSA 10W | |
|---|---|
| Specification | Value |
| Capacity | 10 t |
| Range / speed option | DSA single speed / EDSA inverter-controlled dual speed |
| Chain falls | 4 |
| Standard lift | 5 m |
| Pendant cord | 4.5 m |
| Single speed (50 / 60 Hz) | 1.8 / 2.1 m/min |
| Inverter speed range | 0.9–2.1 m/min |
| Lifting motor | 3.5 kW |
| Load chain diameter × pitch | 11.2 × 34 mm |
| Single-speed net weight | 796 kg |
| Inverter net weight | 800 kg |
| A single speed | 716 mm |
| A inverter | 760 mm |
| B | 380 mm |
| C single speed | 380 mm |
| C inverter | 380 mm |
| D | 1032 mm |
| D2 | — |
| E | 418 mm |
| F | 418 mm |
| M | 120 mm |
| H minimum headroom | 1440 mm |
| L | 822 mm |
Engineering Supplies · Technical data
DAESAN Electric Hoist
DSA/EDSA 15W
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
Specify DSA single speed or EDSA inverter-controlled dual speed with the quote request.
| DAESAN Electric Hoist · DSA/EDSA 15W | |
|---|---|
| Specification | Value |
| Capacity | 15 t |
| Range / speed option | DSA single speed / EDSA inverter-controlled dual speed |
| Chain falls | 6 |
| Standard lift | 5 m |
| Pendant cord | 4.5 m |
| Single speed (50 / 60 Hz) | 1.3 / 1.6 m/min |
| Inverter speed range | 0.9–2.1 m/min |
| Lifting motor | 3.5 × 2 kW |
| Load chain diameter × pitch | 11.2 × 34 mm |
| Single-speed net weight | 901 kg |
| Inverter net weight | 905 kg |
| A single speed | 764 mm |
| A inverter | 898 mm |
| B | 449 mm |
| C single speed | 449 mm |
| C inverter | 449 mm |
| D | 1152 mm |
| D2 | — |
| E | 426 mm |
| F | 426 mm |
| M | 120 mm |
| H minimum headroom | 1790 mm |
| L | 933 mm |
Engineering Supplies · Technical data
DAESAN Electric Hoist
DSA/EDSA 20W
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
Specify DSA single speed or EDSA inverter-controlled dual speed with the quote request.
| DAESAN Electric Hoist · DSA/EDSA 20W | |
|---|---|
| Specification | Value |
| Capacity | 20 t |
| Range / speed option | DSA single speed / EDSA inverter-controlled dual speed |
| Chain falls | 8 |
| Standard lift | 5 m |
| Pendant cord | 4.5 m |
| Single speed (50 / 60 Hz) | 1.3 / 1.6 m/min |
| Inverter speed range | 0.67–1.6 m/min |
| Lifting motor | 3.5 × 2 kW |
| Load chain diameter × pitch | 11.2 × 34 mm |
| Single-speed net weight | 901 kg |
| Inverter net weight | 905 kg |
| A single speed | 806 mm |
| A inverter | 940 mm |
| B | 470 mm |
| C single speed | 470 mm |
| C inverter | 470 mm |
| D | 1152 mm |
| D2 | — |
| E | 426 mm |
| F | 426 mm |
| M | 120 mm |
| H minimum headroom | 1790 mm |
| L | 933 mm |
Engineering Supplies · Technical data
DAESAN Electric Hoist
DST-1S
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DAESAN Electric Hoist · DST-1S | |
|---|---|
| Specification | Value |
| Capacity | 1 t |
| Weight | 58 kg |
| Range / speed option | DST single speed |
| Chain falls | 1 |
| Standard lift | 4 m |
| Pendant cord | 3.5 m |
| Single speed (50 / 60 Hz) | 6.8 / 8.2 m/min |
| Inverter speed range | — |
| Lifting motor | 1.8 kW |
| Load chain diameter × pitch | 7.1 × 21 mm |
| Single-speed net weight | 58 kg |
| Inverter net weight | — |
| A single speed | 526 mm |
| A inverter | — |
| B | 264 mm |
| C single speed | 262 mm |
| C inverter | — |
| D | 311 mm |
| D2 | — |
| E | 146 mm |
| F | 165 mm |
| M | 35 mm |
| H minimum headroom | 400 mm |
| L | 324 mm |
Engineering Supplies · Technical data
DAESAN Electric Hoist
DST-2W
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DAESAN Electric Hoist · DST-2W | |
|---|---|
| Specification | Value |
| Capacity | 2 t |
| Weight | 71 kg |
| Range / speed option | DST single speed |
| Chain falls | 2 |
| Standard lift | 4 m |
| Pendant cord | 3.5 m |
| Single speed (50 / 60 Hz) | 3.4 / 4.1 m/min |
| Inverter speed range | — |
| Lifting motor | 1.8 kW |
| Load chain diameter × pitch | 7.1 × 21 mm |
| Single-speed net weight | 71 kg |
| Inverter net weight | — |
| A single speed | 526 mm |
| A inverter | — |
| B | 264 mm |
| C single speed | 262 mm |
| C inverter | — |
| D | 311 mm |
| D2 | — |
| E | 198 mm |
| F | 113 mm |
| M | 53.5 mm |
| H minimum headroom | 680 mm |
| L | 428 mm |
Engineering Supplies · Technical data
DAESAN Electric Hoist
EDST-1S
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DAESAN Electric Hoist · EDST-1S | |
|---|---|
| Specification | Value |
| Capacity | 1 t |
| Weight | 63 kg |
| Range / speed option | EDST inverter control |
| Chain falls | 1 |
| Standard lift | 4 m |
| Pendant cord | 3.5 m |
| Single speed (50 / 60 Hz) | — |
| Inverter speed range | 2.7–8.2 m/min |
| Lifting motor | 1.8 kW |
| Load chain diameter × pitch | 7.1 × 21 mm |
| Single-speed net weight | — |
| Inverter net weight | 63 kg |
| A single speed | — |
| A inverter | 606 mm |
| B | 264 mm |
| C single speed | — |
| C inverter | 342 mm |
| D | 329 mm |
| D2 | — |
| E | 146 mm |
| F | 183 mm |
| M | 35 mm |
| H minimum headroom | 400 mm |
| L | 358 mm |
Engineering Supplies · Technical data
DAESAN Electric Hoist
EDST-2W
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DAESAN Electric Hoist · EDST-2W | |
|---|---|
| Specification | Value |
| Capacity | 2 t |
| Weight | 77 kg |
| Range / speed option | EDST inverter control |
| Chain falls | 2 |
| Standard lift | 4 m |
| Pendant cord | 3.5 m |
| Single speed (50 / 60 Hz) | — |
| Inverter speed range | 1.3–4.1 m/min |
| Lifting motor | 1.8 kW |
| Load chain diameter × pitch | 7.1 × 21 mm |
| Single-speed net weight | — |
| Inverter net weight | 77 kg |
| A single speed | — |
| A inverter | 606 mm |
| B | 264 mm |
| C single speed | — |
| C inverter | 342 mm |
| D | 329 mm |
| D2 | — |
| E | 198 mm |
| F | 131 mm |
| M | 53.5 mm |
| H minimum headroom | 680 mm |
| L | 462 mm |
