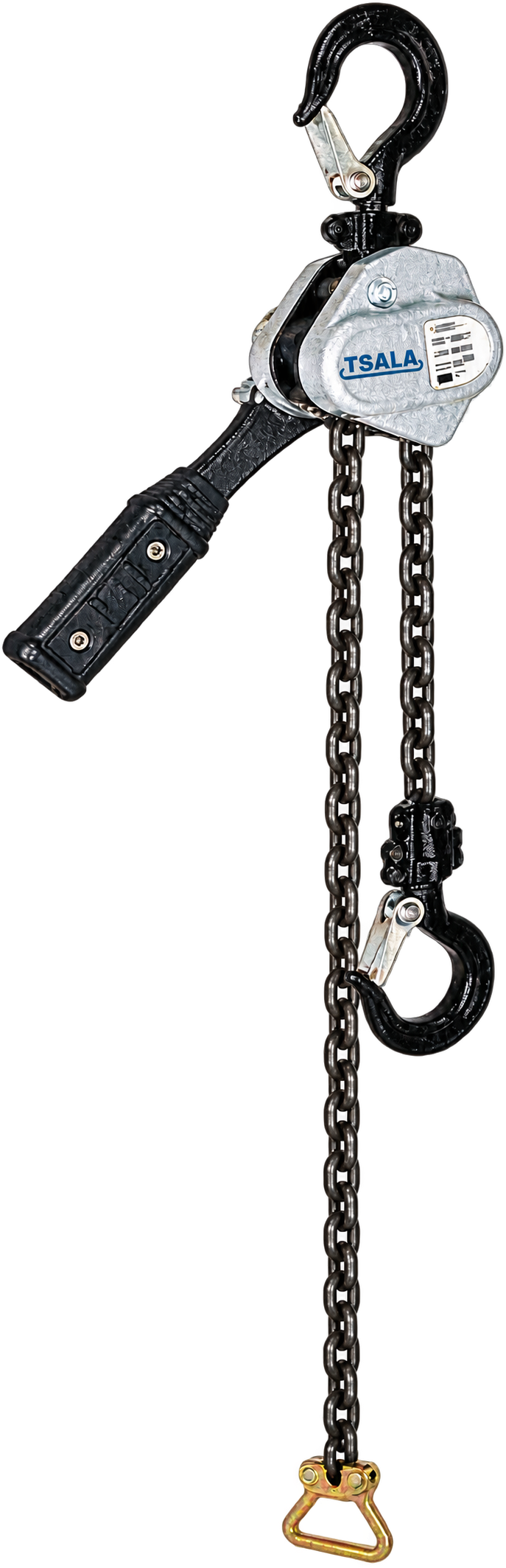

TSALA V-Tec Lever Hoist — retouched product image with TSALA branding. Supplied configuration confirmed with quotation.
Open full-size image of TSALA V-Tec Lever Hoist with TSALA branding, retouched product image (new tab)TSALA · Lever Hoists
TSALA V-Tec Lever Hoist
Compact aluminium lever hoists in 0.25 t and 0.5 t configurations.
- Category
- Manual Hoists
- Subcategory
- Lever Hoists
Product overview
The TSALA V-Tec is a compact aluminium-bodied lever hoist for light-capacity lifting and positioning. Select the required capacity and lift for the application. Applicable technical and compliance documentation can be confirmed with the quotation.
Dimensional views
Use these views with the matching configuration and specification. Drawings are not to scale.

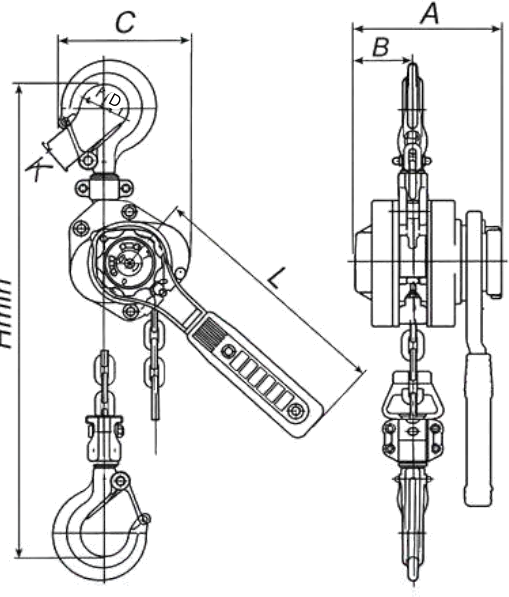

TSALA V-Tec Lever Hoist — dimensional views
Dimensional key for the listed 0.25 t and 0.5 t V-Tec configurations. Read the lettered dimensions against the matching specification.
Open full-size image of TSALA V-Tec Lever Hoist dimensional views (new tab)Configurations
2 available configurations.
| Variant | Capacity | Weight | Capacity (t) | Standard Lift (m) | Reference Lift (m) | Load Chain (mm) | Reference Mass (kg) | A Mm (mm) | B Mm (mm) | C Mm (mm) | Hmin Mm (mm) | L Mm (mm) | D Mm (mm) | K Mm (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.25 t | 0.25 t | — | 0.25 t | 3 m | 1 m | 4 mm | 1.9 kg | 94.5 mm | 35 mm | 84 mm | 230 mm | 163 mm | 34 mm | 24 mm |
| 0.5 t | 0.5 t | — | 0.5 t | 3 m | 1 m | 5 mm | 2.7 kg | 100 mm | 39 mm | 99 mm | 265 mm | 163 mm | 34 mm | 24 mm |
Engineering Supplies · Technical data
TSALA V-Tec Lever Hoist
0.25 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| TSALA V-Tec Lever Hoist · 0.25 t | |
|---|---|
| Specification | Value |
| Capacity | 0.25 t |
| Standard Lift | 3 m |
| Reference Lift | 1 m |
| Load Chain | 4 mm |
| Reference Mass | 1.9 kg |
| A Mm | 94.5 mm |
| B Mm | 35 mm |
| C Mm | 84 mm |
| Hmin Mm | 230 mm |
| L Mm | 163 mm |
| D Mm | 34 mm |
| K Mm | 24 mm |
Engineering Supplies · Technical data
TSALA V-Tec Lever Hoist
0.5 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| TSALA V-Tec Lever Hoist · 0.5 t | |
|---|---|
| Specification | Value |
| Capacity | 0.5 t |
| Standard Lift | 3 m |
| Reference Lift | 1 m |
| Load Chain | 5 mm |
| Reference Mass | 2.7 kg |
| A Mm | 100 mm |
| B Mm | 39 mm |
| C Mm | 99 mm |
| Hmin Mm | 265 mm |
| L Mm | 163 mm |
| D Mm | 34 mm |
| K Mm | 24 mm |
Product specification
Request a quote
Add this product to your enquiry or print the technical information for reference.
