TSALA Plain Beam Trolley
Push/pull beam trolley for manual horizontal travel of suspended hoists, with six capacities from 0.5 to 10 t.
- Category
- Trolleys
- Subcategory
- Beam Trolleys
Product overview
TSALA plain beam trolleys carry a suspended hoist along an I-beam using manual push/pull movement. Adjustable clamp bolts accommodate the beam-width range for each capacity, while the compact arrangement keeps the hoist close to the beam. The 0.5–5 t and 10 t arrangements have separate catalogue photographs and dimensional drawings. Choose the trolley using rated capacity, beam flange width, installation dimensions and the minimum curve radius in the technical table. Select the rated capacity and use its capacity-specific beam flange width, dimensions and minimum curve radius. Confirm beam profile, flange thickness, hoist suspension connection and travel path before ordering. Matching capacities alone do not establish compatibility. Dimensions A-F refer to the matching drawing. F is approximate. The 10 t arrangement differs from the 0.5-5 t arrangement. Follow the instructions supplied with the selected trolley. Availability is confirmed at quotation. Applicable technical and compliance documentation can be confirmed with the quotation. Quotation details: Rated capacity (t); Quantity; Beam profile and flange width (mm); Beam flange thickness (mm); Suspended hoist type and connection dimensions; Travel length and any curve radius (m); Installation clearance and working environment; Required delivery location and date.
Dimensional views
Use these views with the matching configuration and specification. Drawings are not to scale.
TSALA Plain Beam Trolley — TSALA Plain Beam Trolley - 0.5–5 t
Use this drawing only for 0.5, 1, 2, 3, 5 t configurations. Match the exact row; dimensions are not to scale.
Open full-size image of TSALA Plain Beam Trolley TSALA Plain Beam Trolley - 0.5–5 t (new tab)

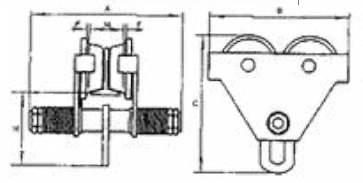

TSALA Plain Beam Trolley — TSALA Plain Beam Trolley - 10 t
Use this drawing only for 10 t configurations. Match the exact row; dimensions are not to scale.
Open full-size image of TSALA Plain Beam Trolley TSALA Plain Beam Trolley - 10 t (new tab)Configurations
6 available configurations.
| Variant | Capacity | Weight | Capacity (t) | Beam Width (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Minimum Curve Radius (m) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 t | 0.5 t | 5 kg | 0.5 t | 55–220 mm | 285 mm | 198 mm | 158 mm | 12.5 mm | 40 mm | ≈3 mm | 0.5 m | 5 kg |
| 1 t | 1 t | 8.8 kg | 1 t | 58–220 mm | 300 mm | 238 mm | 183 mm | 17 mm | 31 mm | ≈3 mm | 0.7 m | 8.8 kg |
| 2 t | 2 t | 14 kg | 2 t | 66–220 mm | 300 mm | 277 mm | 208 mm | 20 mm | 31 mm | ≈3 mm | 0.9 m | 14 kg |
| 3 t | 3 t | 23 kg | 3 t | 74–220 mm | 328 mm | 324 mm | 249 mm | 26 mm | 31 mm | ≈3 mm | 1.2 m | 23 kg |
| 5 t | 5 t | 40 kg | 5 t | 90–220 mm | 354 mm | 373 mm | 296.5 mm | 28 mm | 40 mm | ≈5 mm | 1 m | 40 kg |
| 10 t | 10 t | 86.5 kg | 10 t | 125–203 mm | 403 mm | 455 mm | 490 mm | 82 mm | 36.5 mm | ≈5 mm | 1.3 m | 86.5 kg |
Engineering Supplies · Technical data
TSALA Plain Beam Trolley
0.5 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| TSALA Plain Beam Trolley · 0.5 t | |
|---|---|
| Specification | Value |
| Weight | 5 kg |
| Capacity | 0.5 t |
| Beam Width | 55–220 mm |
| A | 285 mm |
| B | 198 mm |
| C | 158 mm |
| D | 12.5 mm |
| E | 40 mm |
| F | ≈3 mm |
| Minimum Curve Radius | 0.5 m |
| Weight | 5 kg |
Engineering Supplies · Technical data
TSALA Plain Beam Trolley
1 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| TSALA Plain Beam Trolley · 1 t | |
|---|---|
| Specification | Value |
| Weight | 8.8 kg |
| Capacity | 1 t |
| Beam Width | 58–220 mm |
| A | 300 mm |
| B | 238 mm |
| C | 183 mm |
| D | 17 mm |
| E | 31 mm |
| F | ≈3 mm |
| Minimum Curve Radius | 0.7 m |
| Weight | 8.8 kg |
Engineering Supplies · Technical data
TSALA Plain Beam Trolley
2 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| TSALA Plain Beam Trolley · 2 t | |
|---|---|
| Specification | Value |
| Weight | 14 kg |
| Capacity | 2 t |
| Beam Width | 66–220 mm |
| A | 300 mm |
| B | 277 mm |
| C | 208 mm |
| D | 20 mm |
| E | 31 mm |
| F | ≈3 mm |
| Minimum Curve Radius | 0.9 m |
| Weight | 14 kg |
Engineering Supplies · Technical data
TSALA Plain Beam Trolley
3 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| TSALA Plain Beam Trolley · 3 t | |
|---|---|
| Specification | Value |
| Weight | 23 kg |
| Capacity | 3 t |
| Beam Width | 74–220 mm |
| A | 328 mm |
| B | 324 mm |
| C | 249 mm |
| D | 26 mm |
| E | 31 mm |
| F | ≈3 mm |
| Minimum Curve Radius | 1.2 m |
| Weight | 23 kg |
Engineering Supplies · Technical data
TSALA Plain Beam Trolley
5 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| TSALA Plain Beam Trolley · 5 t | |
|---|---|
| Specification | Value |
| Weight | 40 kg |
| Capacity | 5 t |
| Beam Width | 90–220 mm |
| A | 354 mm |
| B | 373 mm |
| C | 296.5 mm |
| D | 28 mm |
| E | 40 mm |
| F | ≈5 mm |
| Minimum Curve Radius | 1 m |
| Weight | 40 kg |
Engineering Supplies · Technical data
TSALA Plain Beam Trolley
10 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| TSALA Plain Beam Trolley · 10 t | |
|---|---|
| Specification | Value |
| Weight | 86.5 kg |
| Capacity | 10 t |
| Beam Width | 125–203 mm |
| A | 403 mm |
| B | 455 mm |
| C | 490 mm |
| D | 82 mm |
| E | 36.5 mm |
| F | ≈5 mm |
| Minimum Curve Radius | 1.3 m |
| Weight | 86.5 kg |
