TSALA Geared Beam Trolley — TSALA Geared Beam Trolley - 0.5–5 t
Use this drawing only for 0.5, 1, 2, 3, 5 t configurations. Match the exact row; dimensions are not to scale.
Open full-size image of TSALA Geared Beam Trolley TSALA Geared Beam Trolley - 0.5–5 t (new tab)TSALA · Beam Trolleys
TSALA Geared Beam Trolley
Hand-chain-operated beam trolley with adjustable beam fit and six tabulated capacities from 0.5 to 10 t.
- Category
- Trolleys
- Subcategory
- Beam Trolleys
Product overview
TSALA geared beam trolleys use a hand chain and machined gear system to move a suspended hoist along a beam. Adjustable clamp bolts set the trolley to the specified beam flange range. Separate 0.5–5 t and 10 t arrangements are illustrated, with model-dependent dimensions, weights and minimum curve radii provided for equipment selection. Select the rated capacity and use its capacity-specific beam flange width, dimensions and minimum curve radius. Confirm beam profile, flange thickness, hoist suspension connection and travel path before ordering. Matching capacities alone do not establish compatibility. Dimensions A-F refer to the matching drawing. F is approximate. The 10 t arrangement differs from the 0.5-5 t arrangement. Follow the instructions supplied with the selected trolley. Availability is confirmed at quotation. Specify the required hand-chain drop. Hand-chain drop and operating effort are confirmed with quotation. Applicable technical and compliance documentation can be confirmed with the quotation. Quotation details: Rated capacity (t); Quantity; Beam profile and flange width (mm); Beam flange thickness (mm); Suspended hoist type and connection dimensions; Travel length and any curve radius (m); Installation clearance and working environment; Required delivery location and date; Required hand-chain drop (m).
Dimensional views
Use these views with the matching configuration and specification. Drawings are not to scale.
TSALA Geared Beam Trolley — TSALA Geared Beam Trolley - 0.5–5 t
Use this drawing only for 0.5, 1, 2, 3, 5 t configurations. Match the exact row; dimensions are not to scale.
Open full-size image of TSALA Geared Beam Trolley TSALA Geared Beam Trolley - 0.5–5 t (new tab)

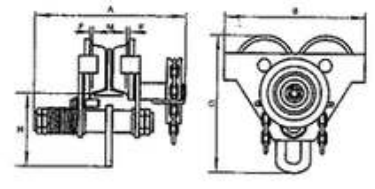

TSALA Geared Beam Trolley — TSALA Geared Beam Trolley - 10 t
Use this drawing only for 10 t configurations. Match the exact row; dimensions are not to scale.
Open full-size image of TSALA Geared Beam Trolley TSALA Geared Beam Trolley - 10 t (new tab)Configurations
6 available configurations.
| Variant | Capacity | Weight | Capacity (t) | Beam Width (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Minimum Curve Radius (m) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 t | 0.5 t | 8.5 kg | 0.5 t | 55–220 mm | 352.5 mm | 198 mm | 158 mm | 12.5 mm | 40 mm | ≈3 mm | 0.5 m | 8.5 kg |
| 1 t | 1 t | 12.5 kg | 1 t | 58–220 mm | 353.5 mm | 238 mm | 183 mm | 17 mm | 31 mm | ≈3 mm | 0.7 m | 12.5 kg |
| 2 t | 2 t | 17 kg | 2 t | 66–220 mm | 362 mm | 277 mm | 208 mm | 20 mm | 31 mm | ≈3 mm | 0.9 m | 17 kg |
| 3 t | 3 t | 28 kg | 3 t | 74–220 mm | 406.5 mm | 324 mm | 249 mm | 26 mm | 31 mm | ≈3 mm | 1.2 m | 28 kg |
| 5 t | 5 t | 45 kg | 5 t | 90–220 mm | 434.5 mm | 373 mm | 296.5 mm | 28 mm | 40 mm | ≈5 mm | 1 m | 45 kg |
| 10 t | 10 t | 93 kg | 10 t | 125–203 mm | 487.5 mm | 455 mm | 490 mm | 82 mm | 36.5 mm | ≈5 mm | 1.3 m | 93 kg |
Engineering Supplies · Technical data
TSALA Geared Beam Trolley
0.5 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| TSALA Geared Beam Trolley · 0.5 t | |
|---|---|
| Specification | Value |
| Weight | 8.5 kg |
| Capacity | 0.5 t |
| Beam Width | 55–220 mm |
| A | 352.5 mm |
| B | 198 mm |
| C | 158 mm |
| D | 12.5 mm |
| E | 40 mm |
| F | ≈3 mm |
| Minimum Curve Radius | 0.5 m |
| Weight | 8.5 kg |
Engineering Supplies · Technical data
TSALA Geared Beam Trolley
1 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| TSALA Geared Beam Trolley · 1 t | |
|---|---|
| Specification | Value |
| Weight | 12.5 kg |
| Capacity | 1 t |
| Beam Width | 58–220 mm |
| A | 353.5 mm |
| B | 238 mm |
| C | 183 mm |
| D | 17 mm |
| E | 31 mm |
| F | ≈3 mm |
| Minimum Curve Radius | 0.7 m |
| Weight | 12.5 kg |
Engineering Supplies · Technical data
TSALA Geared Beam Trolley
2 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| TSALA Geared Beam Trolley · 2 t | |
|---|---|
| Specification | Value |
| Weight | 17 kg |
| Capacity | 2 t |
| Beam Width | 66–220 mm |
| A | 362 mm |
| B | 277 mm |
| C | 208 mm |
| D | 20 mm |
| E | 31 mm |
| F | ≈3 mm |
| Minimum Curve Radius | 0.9 m |
| Weight | 17 kg |
Engineering Supplies · Technical data
TSALA Geared Beam Trolley
3 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| TSALA Geared Beam Trolley · 3 t | |
|---|---|
| Specification | Value |
| Weight | 28 kg |
| Capacity | 3 t |
| Beam Width | 74–220 mm |
| A | 406.5 mm |
| B | 324 mm |
| C | 249 mm |
| D | 26 mm |
| E | 31 mm |
| F | ≈3 mm |
| Minimum Curve Radius | 1.2 m |
| Weight | 28 kg |
Engineering Supplies · Technical data
TSALA Geared Beam Trolley
5 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| TSALA Geared Beam Trolley · 5 t | |
|---|---|
| Specification | Value |
| Weight | 45 kg |
| Capacity | 5 t |
| Beam Width | 90–220 mm |
| A | 434.5 mm |
| B | 373 mm |
| C | 296.5 mm |
| D | 28 mm |
| E | 40 mm |
| F | ≈5 mm |
| Minimum Curve Radius | 1 m |
| Weight | 45 kg |
Engineering Supplies · Technical data
TSALA Geared Beam Trolley
10 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| TSALA Geared Beam Trolley · 10 t | |
|---|---|
| Specification | Value |
| Weight | 93 kg |
| Capacity | 10 t |
| Beam Width | 125–203 mm |
| A | 487.5 mm |
| B | 455 mm |
| C | 490 mm |
| D | 82 mm |
| E | 36.5 mm |
| F | ≈5 mm |
| Minimum Curve Radius | 1.3 m |
| Weight | 93 kg |
Product specification
