TSALA Beam Clamp
Adjustable beam clamps from 1 t to 10 t for fixed lifting-equipment suspension.
- Category
- Lifting Tackle
- Subcategory
- Beam Clamps
Product overview
TSALA Beam Clamps provide removable fixed suspension points on suitable beams. Select the capacity and verify the beam flange width and installation envelope using the capacity-specific table and drawing.
Dimensional views
Use these views with the matching configuration and specification. Drawings are not to scale.

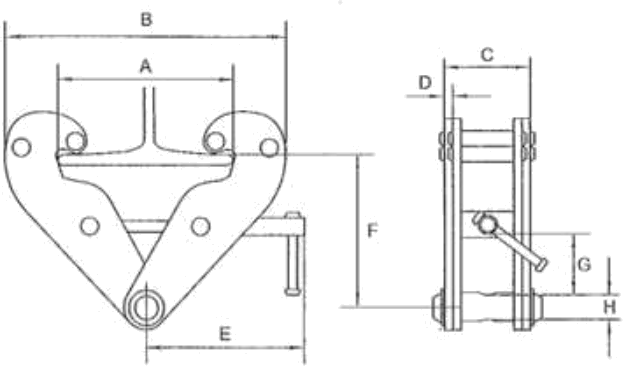

TSALA Beam Clamp — dimensional views
Outline key for the listed beam-clamp range. Confirm beam width and the matching capacity row before selection.
Open full-size image of TSALA Beam Clamp dimensional views (new tab)Configurations
5 available configurations.
| Variant | Capacity | Capacity (t) | Beam Width Mm (mm) | A Max Mm (mm) | B Min Mm (mm) | B Max Mm (mm) | C Mm (mm) | D Mm (mm) | E Mm (mm) | F Min Mm (mm) | F Max Mm (mm) | G Mm (mm) | H Mm (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 t | 1 t | 1 t | 75–220 mm | 260 mm | 180 mm | 360 mm | 64 mm | 5 mm | 215 mm | 102 mm | 155 mm | 25 mm | 22 mm |
| 2 t | 2 t | 2 t | 75–220 mm | 260 mm | 180 mm | 360 mm | 74 mm | 6 mm | 215 mm | 102 mm | 155 mm | 25 mm | 22 mm |
| 3 t | 3 t | 3 t | 80–320 mm | 354 mm | 235 mm | 490 mm | 103 mm | 8 mm | 260 mm | 140 mm | 225 mm | 45 mm | 24 mm |
| 5 t | 5 t | 5 t | 80–320 mm | 354 mm | 235 mm | 490 mm | 110 mm | 10 mm | 260 mm | 140 mm | 225 mm | 45 mm | 28 mm |
| 10 t | 10 t | 10 t | 90–320 mm | 365 mm | 320 mm | 505 mm | 120 mm | 12 mm | 280 mm | 170 mm | 235 mm | 50 mm | 40 mm |
