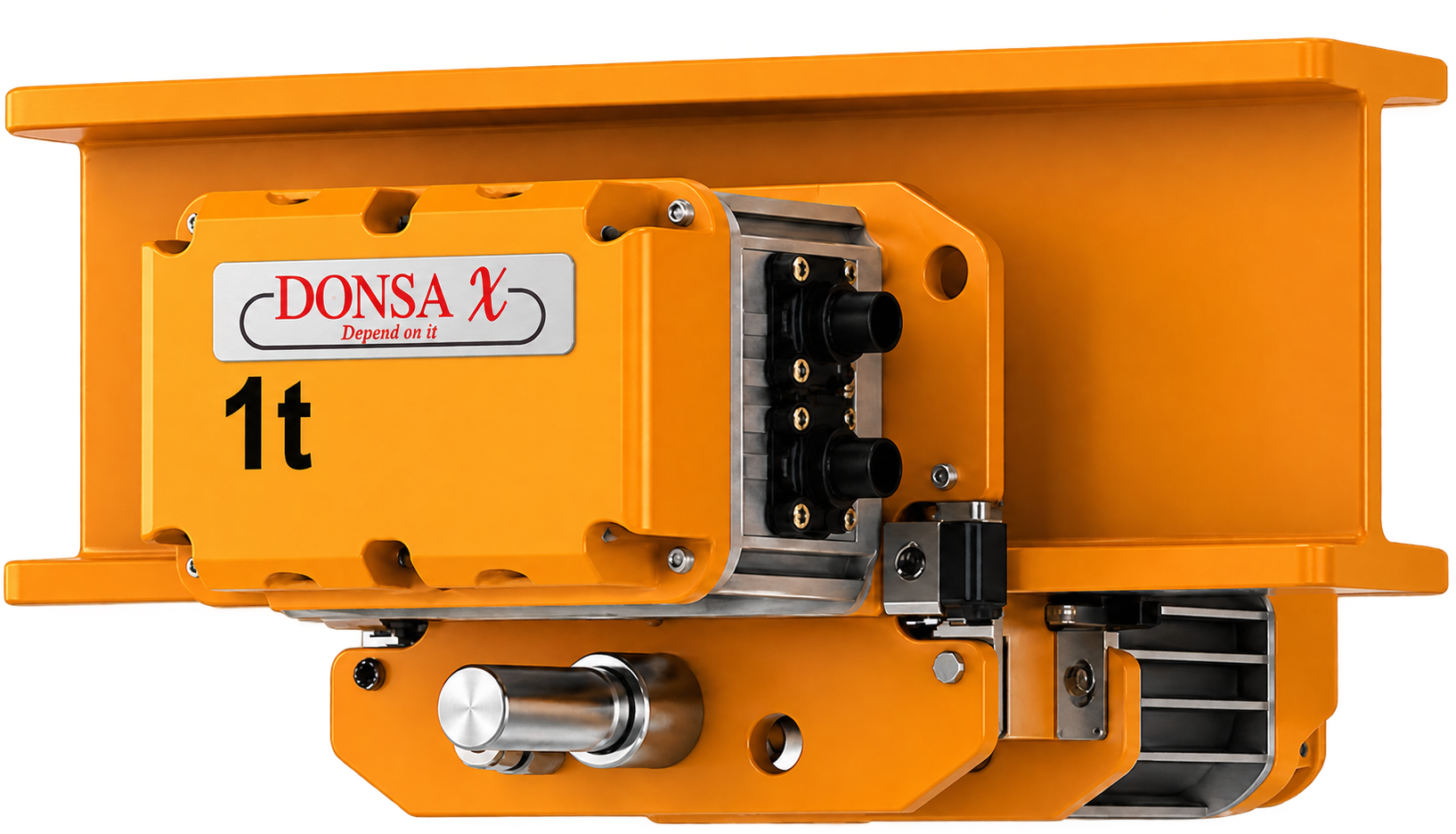

DONSA-X Motorised Trolley — retouched catalogue image with the DONSA X logo on a light nameplate. Pictured 1 t arrangement; supplied configuration confirmed with quotation.
Open full-size image of DONSA-X Motorised Trolley retouched image with the red DONSA X logo on a light nameplate (new tab)DONSA-X · Motorised Trolleys
DONSA-X Motorised Trolley
Powered trolleys for 1 t, 2 t, 3 t and 5 t hoist installations.
- Category
- Trolleys
- Subcategory
- Motorised Trolleys
Product overview
DONSA-X Motorised Trolleys provide powered horizontal travel for compatible hoist installations. Select by capacity, beam flange width, travel requirements and electrical supply. Capacity-specific manufacturer-backed dimensions and travel data are provided in the technical table.
Dimensional views
Use these views with the matching configuration and specification. Drawings are not to scale.

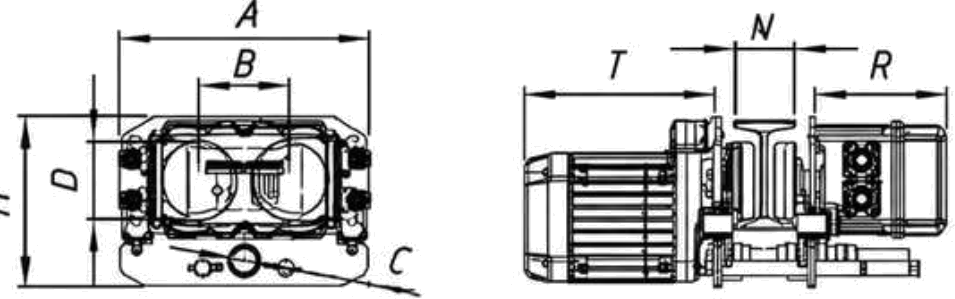

DONSA-X Motorised Trolley — dimensional drawing. Select the matching capacity and beam-width configuration.
Original dimensional key for the listed trolley capacities. Match the beam-width and capacity row in the specification; the product illustration is not a dimensional reference.
Open full-size image of DONSA-X Motorised Trolley dimensional drawing (new tab)Configurations
4 available configurations.
| Variant | Capacity | Weight | Capacity (t) | A Mm (mm) | B Mm (mm) | R Mm (mm) | T Mm (mm) | I Mm (mm) | Travel Speed - 50 Hz (m/min) | Travel Speed - 60 Hz (m/min) | Beam Flange Width (mm) | Net Weight (kg) | Minimum Curve Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 t | 1 t | — | 1 t | 315 mm | 212 mm | 142 mm | 231 mm | 31 mm | 10/20 m/min | 12/24 m/min | 80-160 mm | 41 kg | 800 mm |
| 2 t | 2 t | — | 2 t | 325 mm | 220 mm | 142 mm | 231 mm | 36 mm | 10/20 m/min | 12/24 m/min | 82-178 mm | 49 kg | 800 mm |
| 3 t | 3 t | — | 3 t | 340 mm | 250 mm | 142 mm | 231 mm | 43 mm | 10 m/min | 12 m/min | 100-180 mm | 61 kg | 1000 mm |
| 5 t | 5 t | — | 5 t | 400 mm | 291 mm | 142 mm | 231 mm | 54 mm | 10 m/min | 12 m/min | 100-180 mm | 82 kg | 1800 mm |
Engineering Supplies · Technical data
DONSA-X Motorised Trolley
1 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| DONSA-X Motorised Trolley · 1 t | |
|---|---|
| Specification | Value |
| Capacity | 1 t |
| A Mm | 315 mm |
| B Mm | 212 mm |
| R Mm | 142 mm |
| T Mm | 231 mm |
| I Mm | 31 mm |
| Travel Speed - 50 Hz | 10/20 m/min |
| Travel Speed - 60 Hz | 12/24 m/min |
| Beam Flange Width | 80-160 mm |
| Net Weight | 41 kg |
| Minimum Curve Radius | 800 mm |
Engineering Supplies · Technical data
DONSA-X Motorised Trolley
2 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| DONSA-X Motorised Trolley · 2 t | |
|---|---|
| Specification | Value |
| Capacity | 2 t |
| A Mm | 325 mm |
| B Mm | 220 mm |
| R Mm | 142 mm |
| T Mm | 231 mm |
| I Mm | 36 mm |
| Travel Speed - 50 Hz | 10/20 m/min |
| Travel Speed - 60 Hz | 12/24 m/min |
| Beam Flange Width | 82-178 mm |
| Net Weight | 49 kg |
| Minimum Curve Radius | 800 mm |
Engineering Supplies · Technical data
DONSA-X Motorised Trolley
3 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| DONSA-X Motorised Trolley · 3 t | |
|---|---|
| Specification | Value |
| Capacity | 3 t |
| A Mm | 340 mm |
| B Mm | 250 mm |
| R Mm | 142 mm |
| T Mm | 231 mm |
| I Mm | 43 mm |
| Travel Speed - 50 Hz | 10 m/min |
| Travel Speed - 60 Hz | 12 m/min |
| Beam Flange Width | 100-180 mm |
| Net Weight | 61 kg |
| Minimum Curve Radius | 1000 mm |
Engineering Supplies · Technical data
DONSA-X Motorised Trolley
5 t
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| DONSA-X Motorised Trolley · 5 t | |
|---|---|
| Specification | Value |
| Capacity | 5 t |
| A Mm | 400 mm |
| B Mm | 291 mm |
| R Mm | 142 mm |
| T Mm | 231 mm |
| I Mm | 54 mm |
| Travel Speed - 50 Hz | 10 m/min |
| Travel Speed - 60 Hz | 12 m/min |
| Beam Flange Width | 100-180 mm |
| Net Weight | 82 kg |
| Minimum Curve Radius | 1800 mm |
