DONSA-X Electric Hoist
DONSA-X hook-suspended electric chain hoists from 0.5 t to 5 t.
- Category
- Electric Hoists
- Subcategory
- Electric Chain Hoists
Product overview
DONSA-X hook-suspended electric chain hoists in five single-speed configurations from 0.5–5 t. The 0.5–3 t models use one chain fall; the 5 t model uses two. Dimensions apply to the selected SS hook-suspension edition and are nominal. Specify supply voltage and frequency, lift height, suspension and control requirements with your enquiry. Confirm the supplied model dimensions before installation. The dimensional key shows the single-fall arrangement only; request the matching two-fall installation drawing for 5 t.
Dimensional views
Use these views with the matching configuration and specification. Drawings are not to scale.

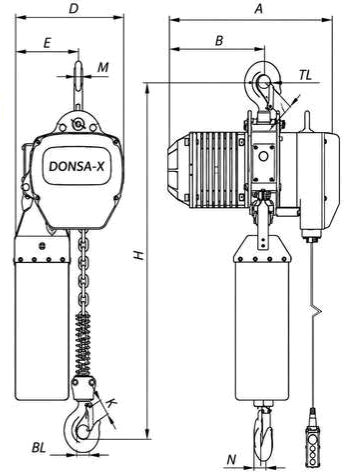

DONSA-X Electric Hoist — single-fall dimensional key
Original DONSA-X-branded catalogue drawing; match its letters to the selected SS dimension row. The key shows one chain fall (0.5–3 t), not the two-fall 5 t installation arrangement. J is tabulated but is not labelled in this key. Confirm supplied dimensions before installation.
Open full-size image of DONSA-X Electric Hoist — single-fall dimensional key (new tab)Configurations
5 available configurations.
| Variant | Capacity | Capacity (t) | Standard Lift (m) | Lifting Speed - 50 Hz (m/min) | Lifting Speed - 60 Hz (m/min) | Lifting Motor (kW) | Load Chain Diameter (mm) | Chain Falls | Net Weight (kg) | H (mm) | A (mm) | B (mm) | D (mm) | E (mm) | TL (diameter) (mm) | J (mm) | BL (diameter) (mm) | K (mm) | M (mm) | N (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 t | 0.5 t | 0.5 t | 3 m | 7.2 m/min | 8.6 m/min | 0.75 kW | 6.3 mm | 1 | 42 kg | 550 mm | 460 mm | 230 mm | 280 mm | 160 mm | 35 mm | 25 mm | 35 mm | 25 mm | 17 mm | 17 mm |
| 1 t | 1 t | 1 t | 3 m | 6.8 m/min | 8.2 m/min | 1.5 kW | 7.1 mm | 1 | 59 kg | 650 mm | 520 mm | 260 mm | 300 mm | 176 mm | 40 mm | 31 mm | 40 mm | 31 mm | 22 mm | 22 mm |
| 2 t | 2 t | 2 t | 3 m | 6.6 m/min | 7.9 m/min | 3 kW | 10 mm | 1 | 109 kg | 800 mm | 615 mm | 295 mm | 430 mm | 265 mm | 47 mm | 40 mm | 47 mm | 38 mm | 30 mm | 30 mm |
| 3 t | 3 t | 3 t | 3 m | 5.4 m/min | 6.5 m/min | 3 kW | 11.2 mm | 1 | 113 kg | 845 mm | 615 mm | 295 mm | 430 mm | 265 mm | 58 mm | 47 mm | 58 mm | 47 mm | 36 mm | 36 mm |
| 5 t | 5 t | 5 t | 3 m | 2.7 m/min | 3.2 m/min | 3 kW | 11.2 mm | 2 | 138 kg | 1030 mm | 615 mm | 295 mm | 430 mm | 325 mm | 60 mm | 48 mm | 60 mm | 48 mm | 43 mm | 43 mm |
Engineering Supplies · Technical data
DONSA-X Electric Hoist
0.5 t
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DONSA-X Electric Hoist · 0.5 t | |
|---|---|
| Specification | Value |
| Capacity | 0.5 t |
| Standard Lift | 3 m |
| Lifting Speed - 50 Hz | 7.2 m/min |
| Lifting Speed - 60 Hz | 8.6 m/min |
| Lifting Motor | 0.75 kW |
| Load Chain Diameter | 6.3 mm |
| Chain Falls | 1 |
| Net Weight | 42 kg |
| H | 550 mm |
| A | 460 mm |
| B | 230 mm |
| D | 280 mm |
| E | 160 mm |
| TL (diameter) | 35 mm |
| J | 25 mm |
| BL (diameter) | 35 mm |
| K | 25 mm |
| M | 17 mm |
| N | 17 mm |
Engineering Supplies · Technical data
DONSA-X Electric Hoist
1 t
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DONSA-X Electric Hoist · 1 t | |
|---|---|
| Specification | Value |
| Capacity | 1 t |
| Standard Lift | 3 m |
| Lifting Speed - 50 Hz | 6.8 m/min |
| Lifting Speed - 60 Hz | 8.2 m/min |
| Lifting Motor | 1.5 kW |
| Load Chain Diameter | 7.1 mm |
| Chain Falls | 1 |
| Net Weight | 59 kg |
| H | 650 mm |
| A | 520 mm |
| B | 260 mm |
| D | 300 mm |
| E | 176 mm |
| TL (diameter) | 40 mm |
| J | 31 mm |
| BL (diameter) | 40 mm |
| K | 31 mm |
| M | 22 mm |
| N | 22 mm |
Engineering Supplies · Technical data
DONSA-X Electric Hoist
2 t
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DONSA-X Electric Hoist · 2 t | |
|---|---|
| Specification | Value |
| Capacity | 2 t |
| Standard Lift | 3 m |
| Lifting Speed - 50 Hz | 6.6 m/min |
| Lifting Speed - 60 Hz | 7.9 m/min |
| Lifting Motor | 3 kW |
| Load Chain Diameter | 10 mm |
| Chain Falls | 1 |
| Net Weight | 109 kg |
| H | 800 mm |
| A | 615 mm |
| B | 295 mm |
| D | 430 mm |
| E | 265 mm |
| TL (diameter) | 47 mm |
| J | 40 mm |
| BL (diameter) | 47 mm |
| K | 38 mm |
| M | 30 mm |
| N | 30 mm |
Engineering Supplies · Technical data
DONSA-X Electric Hoist
3 t
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DONSA-X Electric Hoist · 3 t | |
|---|---|
| Specification | Value |
| Capacity | 3 t |
| Standard Lift | 3 m |
| Lifting Speed - 50 Hz | 5.4 m/min |
| Lifting Speed - 60 Hz | 6.5 m/min |
| Lifting Motor | 3 kW |
| Load Chain Diameter | 11.2 mm |
| Chain Falls | 1 |
| Net Weight | 113 kg |
| H | 845 mm |
| A | 615 mm |
| B | 295 mm |
| D | 430 mm |
| E | 265 mm |
| TL (diameter) | 58 mm |
| J | 47 mm |
| BL (diameter) | 58 mm |
| K | 47 mm |
| M | 36 mm |
| N | 36 mm |
Engineering Supplies · Technical data
DONSA-X Electric Hoist
5 t
Read with the product overview, matching product views and compliance information. Confirm the selected configuration with your quotation.
| DONSA-X Electric Hoist · 5 t | |
|---|---|
| Specification | Value |
| Capacity | 5 t |
| Standard Lift | 3 m |
| Lifting Speed - 50 Hz | 2.7 m/min |
| Lifting Speed - 60 Hz | 3.2 m/min |
| Lifting Motor | 3 kW |
| Load Chain Diameter | 11.2 mm |
| Chain Falls | 2 |
| Net Weight | 138 kg |
| H | 1030 mm |
| A | 615 mm |
| B | 295 mm |
| D | 430 mm |
| E | 325 mm |
| TL (diameter) | 60 mm |
| J | 48 mm |
| BL (diameter) | 60 mm |
| K | 48 mm |
| M | 43 mm |
| N | 43 mm |
