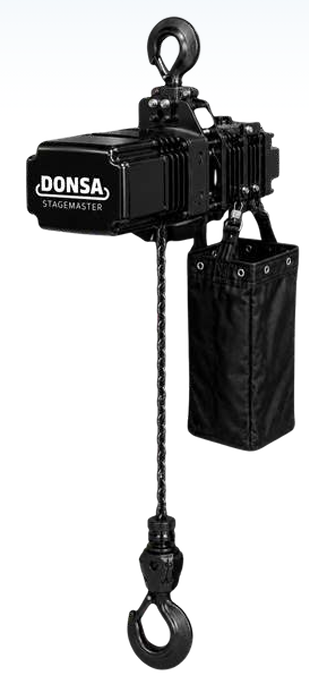

DONSA StageMaster D8+ Electric Chain Hoist — product photograph; configuration may vary
Select capacity and duty configuration together.
Open full-size image of DONSA StageMaster D8+ Electric Chain Hoist product photograph; configuration may vary (new tab)DONSA StageMaster · Electric Stage Chain Hoists
DONSA StageMaster D8+ Electric Chain Hoist
Electric chain hoist for stage and entertainment applications, offered in six configurations from 250 kg to 2,000 kg with a standard supplied lift of 25 m.
- Category
- Stage & Entertainment
- Subcategory
- Electric Stage Chain Hoists
Product overview
Electric chain hoist for stage and entertainment applications, offered in six configurations from 250 kg to 2,000 kg with a standard supplied lift of 25 m. Choose the capacity and duty configuration together: 500 kg and 1,000 kg each have two distinct duty options. Standard supplied lift: 25 m. Ask for other lift lengths. Catalogue performance basis: 380-415 V, 50 Hz, three-phase motor supply. Confirm the actual site supply and control arrangement at quotation. Two brakes and IP66 protection are listed across the six configurations. Encoder requirements and the exact external limit-switch supply arrangement are confirmed at quotation. Body weight is not the completed mass of the 25 m supplied hoist. Availability confirmed at quotation. Manufacturer catalogue lists EN 14492-2, EN 17206 and SQP2 2024. This is not a certificate or approval of a complete installation.

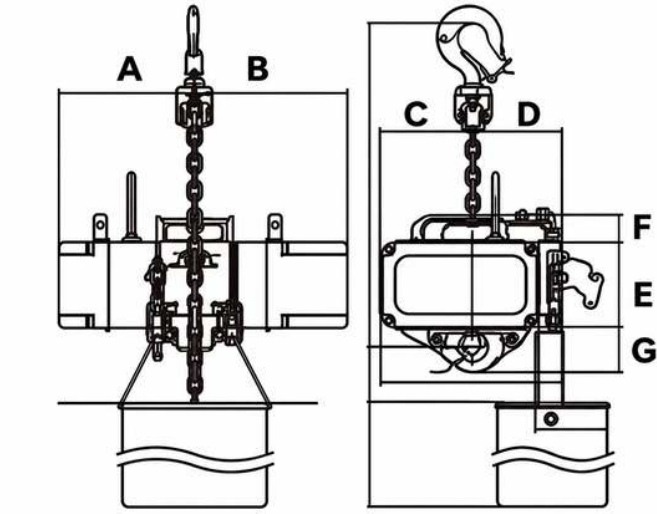

Dimensional views
Use these views with the matching configuration and specification. Drawings are not to scale.
DONSA StageMaster D8+ Electric Chain Hoist — dimensional views
Match this drawing to the selected capacity and duty configuration. Drawings are not to scale; do not infer dimensions absent from the table.
Open full-size image of DONSA StageMaster D8+ Electric Chain Hoist dimensional views (new tab)Configurations
6 available configurations.
| Variant | Capacity | Weight | Capacity (kg) | Hmin (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | K (mm) | Type | Brakes | Limit Switch Type | Duty classification | Duty cycle (%) | IP rating | Chain (mm) | Falls | Lifting speed (m/min) | Motor (kW) | Body Weight (kg) | Standard Supplied Lift (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.25 t / M5 (2m) | 0.25 t | — | 250 kg | 400 mm | 197 mm | 174 mm | 110 mm | 111 mm | 100 mm | 44 mm | 117 mm | 22 mm | DC | 2 | External | M5 (2m) | 40 % | IP66 | 5x15 mm | 1 | 4 m/min | 0.18 kW | 14 kg | 25 m |
| 0.5 t / M3 (1Bm) | 0.5 t | — | 500 kg | 400 mm | 197 mm | 174 mm | 110 mm | 111 mm | 100 mm | 44 mm | 117 mm | 28 mm | DC | 2 | External | M3 (1Bm) | 25 % | IP66 | 5x15 mm | 1 | 4 m/min | 0.37 kW | 15 kg | 25 m |
| 0.5 t / M5 (2m) | 0.5 t | — | 500 kg | 600 mm | 206 mm | 231 mm | 145 mm | 142 mm | 133 mm | 44 mm | 146 mm | 31 mm | DC/LVC | 2 | External | M5 (2m) | 40 % | IP66 | 7.1x21 mm | 1 | 4 m/min | 0.37 kW | 26 kg | 25 m |
| 1 t / M3 (1Bm) | 1 t | — | 1000 kg | 600 mm | 206 mm | 231 mm | 145 mm | 142 mm | 133 mm | 44 mm | 146 mm | 31 mm | DC/LVC | 2 | External | M3 (1Bm) | 25 % | IP66 | 7.1x21 mm | 1 | 4 m/min | 0.75 kW | 29 kg | 25 m |
| 1 t / M5 (2m) | 1 t | — | 1000 kg | 585 mm | 239 mm | 266 mm | 169 mm | 166 mm | 150 mm | 44 mm | 167 mm | 31 mm | DC/LVC | 2 | External | M5 (2m) | 40 % | IP66 | 8x24 mm | 1 | 4 m/min | 0.75 kW | 47 kg | 25 m |
| 2 t / M3 (1Bm) | 2 t | — | 2000 kg | 585 mm | 239 mm | 266 mm | 169 mm | 166 mm | 150 mm | 44 mm | 167 mm | 39 mm | DC/LVC | 2 | External | M3 (1Bm) | 25 % | IP66 | 10x30 mm | 1 | 4 m/min | 1.5 kW | 50 kg | 25 m |
Engineering Supplies · Technical data
DONSA StageMaster D8+ Electric Chain Hoist
0.25 t / M5 (2m)
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| DONSA StageMaster D8+ Electric Chain Hoist · 0.25 t / M5 (2m) | |
|---|---|
| Specification | Value |
| Capacity | 250 kg |
| Hmin | 400 mm |
| A | 197 mm |
| B | 174 mm |
| C | 110 mm |
| D | 111 mm |
| E | 100 mm |
| F | 44 mm |
| G | 117 mm |
| K | 22 mm |
| Type | DC |
| Brakes | 2 |
| Limit Switch Type | External |
| Duty classification | M5 (2m) |
| Duty cycle | 40 % |
| IP rating | IP66 |
| Chain | 5x15 mm |
| Falls | 1 |
| Lifting speed | 4 m/min |
| Motor | 0.18 kW |
| Body Weight | 14 kg |
| Standard Supplied Lift | 25 m |
Engineering Supplies · Technical data
DONSA StageMaster D8+ Electric Chain Hoist
0.5 t / M3 (1Bm)
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| DONSA StageMaster D8+ Electric Chain Hoist · 0.5 t / M3 (1Bm) | |
|---|---|
| Specification | Value |
| Capacity | 500 kg |
| Hmin | 400 mm |
| A | 197 mm |
| B | 174 mm |
| C | 110 mm |
| D | 111 mm |
| E | 100 mm |
| F | 44 mm |
| G | 117 mm |
| K | 28 mm |
| Type | DC |
| Brakes | 2 |
| Limit Switch Type | External |
| Duty classification | M3 (1Bm) |
| Duty cycle | 25 % |
| IP rating | IP66 |
| Chain | 5x15 mm |
| Falls | 1 |
| Lifting speed | 4 m/min |
| Motor | 0.37 kW |
| Body Weight | 15 kg |
| Standard Supplied Lift | 25 m |
Engineering Supplies · Technical data
DONSA StageMaster D8+ Electric Chain Hoist
0.5 t / M5 (2m)
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| DONSA StageMaster D8+ Electric Chain Hoist · 0.5 t / M5 (2m) | |
|---|---|
| Specification | Value |
| Capacity | 500 kg |
| Hmin | 600 mm |
| A | 206 mm |
| B | 231 mm |
| C | 145 mm |
| D | 142 mm |
| E | 133 mm |
| F | 44 mm |
| G | 146 mm |
| K | 31 mm |
| Type | DC/LVC |
| Brakes | 2 |
| Limit Switch Type | External |
| Duty classification | M5 (2m) |
| Duty cycle | 40 % |
| IP rating | IP66 |
| Chain | 7.1x21 mm |
| Falls | 1 |
| Lifting speed | 4 m/min |
| Motor | 0.37 kW |
| Body Weight | 26 kg |
| Standard Supplied Lift | 25 m |
Engineering Supplies · Technical data
DONSA StageMaster D8+ Electric Chain Hoist
1 t / M3 (1Bm)
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| DONSA StageMaster D8+ Electric Chain Hoist · 1 t / M3 (1Bm) | |
|---|---|
| Specification | Value |
| Capacity | 1000 kg |
| Hmin | 600 mm |
| A | 206 mm |
| B | 231 mm |
| C | 145 mm |
| D | 142 mm |
| E | 133 mm |
| F | 44 mm |
| G | 146 mm |
| K | 31 mm |
| Type | DC/LVC |
| Brakes | 2 |
| Limit Switch Type | External |
| Duty classification | M3 (1Bm) |
| Duty cycle | 25 % |
| IP rating | IP66 |
| Chain | 7.1x21 mm |
| Falls | 1 |
| Lifting speed | 4 m/min |
| Motor | 0.75 kW |
| Body Weight | 29 kg |
| Standard Supplied Lift | 25 m |
Engineering Supplies · Technical data
DONSA StageMaster D8+ Electric Chain Hoist
1 t / M5 (2m)
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| DONSA StageMaster D8+ Electric Chain Hoist · 1 t / M5 (2m) | |
|---|---|
| Specification | Value |
| Capacity | 1000 kg |
| Hmin | 585 mm |
| A | 239 mm |
| B | 266 mm |
| C | 169 mm |
| D | 166 mm |
| E | 150 mm |
| F | 44 mm |
| G | 167 mm |
| K | 31 mm |
| Type | DC/LVC |
| Brakes | 2 |
| Limit Switch Type | External |
| Duty classification | M5 (2m) |
| Duty cycle | 40 % |
| IP rating | IP66 |
| Chain | 8x24 mm |
| Falls | 1 |
| Lifting speed | 4 m/min |
| Motor | 0.75 kW |
| Body Weight | 47 kg |
| Standard Supplied Lift | 25 m |
Engineering Supplies · Technical data
DONSA StageMaster D8+ Electric Chain Hoist
2 t / M3 (1Bm)
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
| DONSA StageMaster D8+ Electric Chain Hoist · 2 t / M3 (1Bm) | |
|---|---|
| Specification | Value |
| Capacity | 2000 kg |
| Hmin | 585 mm |
| A | 239 mm |
| B | 266 mm |
| C | 169 mm |
| D | 166 mm |
| E | 150 mm |
| F | 44 mm |
| G | 167 mm |
| K | 39 mm |
| Type | DC/LVC |
| Brakes | 2 |
| Limit Switch Type | External |
| Duty classification | M3 (1Bm) |
| Duty cycle | 25 % |
| IP rating | IP66 |
| Chain | 10x30 mm |
| Falls | 1 |
| Lifting speed | 4 m/min |
| Motor | 1.5 kW |
| Body Weight | 50 kg |
| Standard Supplied Lift | 25 m |
Product specification
Download DONSA StageMaster D8+ Electric Chain Hoist specification (PDF)
