CARVER Bar Clamp
Standard-duty long-reach bar clamp for engineering workholding. The reversible-jaw arrangement supports spreading, and the spring-loaded jaw retains its position after pressure is released.
- Category
- Clamps & Workholding
- Subcategory
- Workholding Clamps
Product overview
Standard-duty long-reach bar clamp for engineering workholding. The reversible-jaw arrangement supports spreading, and the spring-loaded jaw retains its position after pressure is released. Workholding clamp. Clamping force is not a lifting capacity or working load limit. Select by clamp type and manufacturer part number; the T321-24 and T321-600 aliases are shared by different clamp types. Manufacturer part C301187; model T321-24 / T321-600. Specify quantity of clamps, required opening and reach, workpiece material and application at quotation. Availability confirmed at quotation.
Dimensional views
Use these views with the matching configuration and specification. Drawings are not to scale.

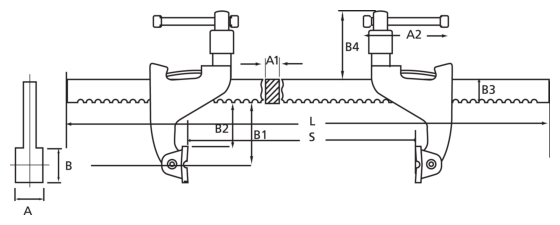

CARVER Bar Clamp — manufacturer dimensional key
Manufacturer series illustration. Use only the selected clamp type and exact part specification; the drawing is not to scale.
Open full-size image of CARVER Bar Clamp manufacturer dimensional key (new tab)Configurations
1 available configuration.
| Variant | Capacity | Weight | Manufacturer part | Model | Alternative model | Opening S (mm) | Reach B1 (mm) | Clamping force (daN) | Mass (kg) | A (mm) | A1 (mm) | A2 (mm) | B (mm) | B2 (mm) | B3 (mm) | B4 (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C301187 / T321-24 | — | 3.5 kg | C301187 | T321-24 | T321-600 | 600 mm | 120 mm | 565 daN | 3.5 kg | 25 mm | 12 mm | 76 mm | 32 mm | 104 mm | 30 mm | 76 mm | 710 mm |
Engineering Supplies · Technical data
CARVER Bar Clamp
C301187 / T321-24
Read with the product overview, matching dimensional views and compliance information. Confirm the selected configuration with your quotation.
Workholding clamp; not lifting equipment.
| CARVER Bar Clamp · C301187 / T321-24 | |
|---|---|
| Specification | Value |
| Weight | 3.5 kg |
| Manufacturer part | C301187 |
| Model | T321-24 |
| Alternative model | T321-600 |
| Opening S | 600 mm |
| Reach B1 | 120 mm |
| Clamping force | 565 daN |
| Mass | 3.5 kg |
| A | 25 mm |
| A1 | 12 mm |
| A2 | 76 mm |
| B | 32 mm |
| B2 | 104 mm |
| B3 | 30 mm |
| B4 | 76 mm |
| L | 710 mm |
